TMX Turbo Face Milling Cutters
Features:

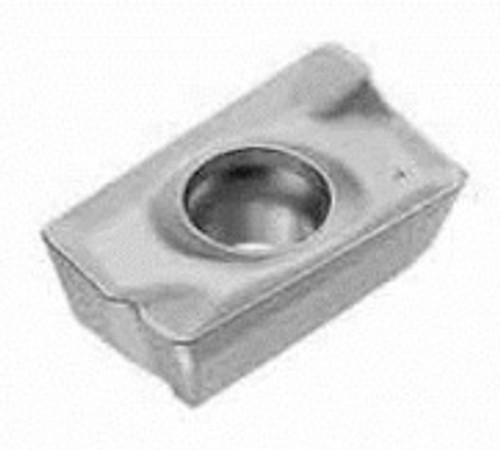

- 90º KPA-503K inserts compliment this cutter's unique geometry.
- Irregularly spaced flutes allow faster stock removal, reduced harmonics and chattering.
- Minimizes heat and friction.
Tool Angles:
- Cutting Rake Angle: 11º, -8º-6º
- Radial Rake Angle: -11º, -8º-6º
- Axial Rake Angle: 7º, 9º
- Setting Angle: 90º
Technical Data:

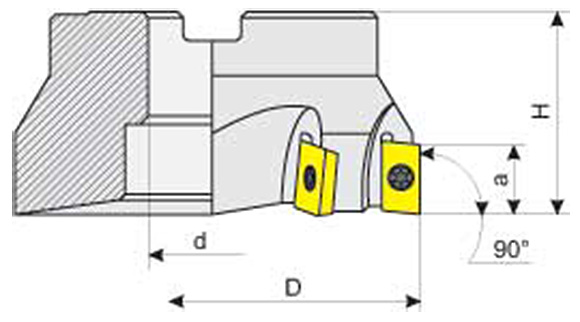

Item Number | 6-955-020 | 6-955-030 | 6-955-040 | 6-955-045 | |
Diameter OD | in | 2 | 3 | 4 | 4 |
Flutes | 5 | 6 | 8 | 8 | |
Insert | 6-AP__1604 | 6-AP__1604 | 6-AP__1604 | 6-AP__1604 | |
d | in | 0.75 | 1 | 1-1/4 | 1-1/2 |
H | in | 1.75 | 2 | 2 | 2 |
ap (ad) | in | 0.646 | 0.646 | 0.646 | 0.646 |
Insert Screw | 6-998-4011 | 6-998-4011 | 6-998-4011 | 6-998-4011 | |
Wrench | 6-998-015 | 6-998-015 | 6-998-015 | 6-998-015 |
