TMX 3-Jaw(2Pc) Scroll Chuck Forged Steel 10in D1-6 - 3-823-1036P

Brand:

TMX 3-Jaw(2Pc) Scroll Chuck Forged Steel 10in D1-6 - 3-823-1036P
(No reviews yet) Write a Review
SKU:
3-823-1036P
TMX 3-Jaw(2Pc) Scroll Chuck Forged Steel 10in D1-6 - 3-823-1036P

Toolmex

TMX 3-Jaw(2Pc) Scroll Chuck Forged Steel 10in D1-6 - 3-823-1036P


Technical Data:

Chuck Type   3-Jaw Scroll
Chuck Size in 10
Material   Forged Steel
Jaw Type   2 Piece
Taper   D1-6
Mount Type   Back
Gripping Force (daN) daN 4600
Gripping Force (lbf) lbf 10100
Torque on Wrench lbf*ft 447
Maximum Speed RPM 3500
Weight lb 17.1007



Chuck Diameter (D) in 10
Chuck Diameter (D) mm mm 250
B in 4.1884
E in 2.9921
F in 5.252
H in 4.6063
L in 1.3386
L1 in 3.626

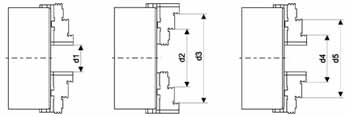

d1 min in 0.1969
d1 max in 4.6457
d2 min in 3.3858
d2 max in 7.7559
d3 min in 6.2992
d3 max in 9.8425
d4 min in 2.2835
d4 max in 6.4961
d5 min in 6.2992
d5 max in 9.8425

TMX 3-Jaw(2Pc) Scroll Chuck Forged Steel 10in D1-6
