Keller TKO Pump/Skimmer, 25-200 gallon - TKO-10
Tramp Oil Separator for One Sump, 10 gallon separator
A Keller TKO Pump/Skimmer rapidly sweeps out tramp oil, cleans and aerates the entire sump.
Get these Benefits:
- Extended tool life, improved parts finish
- Smoke and odor eliminated
- Multiplied coolant life = Much less machine downtime, greatly reduced coolant purchase & disposal costs
With these exclusive Keller features:
- Patented permanent oil separating (coalescing) element, never needs changing
- Rugged high flow 1/2” air-operated pump provides rapid tramp oil removal, circulates & aerates entire sump
- Compact inlet device can access any pump
- No electricals
- Sets up in minutes – Requires minimal operator attention
The self-priming air operated pump pulls the tramp oil/coolant mixture from the surface of the sump through the floating inlet device, then through a cartridge filter which removes any chips from the fluid. The oil/coolant mixture is then pumped through the patented Keller all-plastic separator element immersed in a separator tank. The cleaned coolant continuously returns to the sump. The oil layer collects on the top of the separator tank and is occasionally drained into a waste oil container, simply by opening the oil drain valve. No other operator attention is required.
Selecting and Installing a TKO Separator:

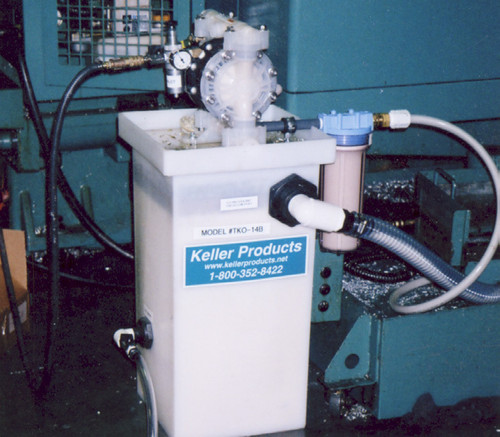

Three models of TKO Separators are offered, to satisfy any sump size. Each TKO Separator is shipped by UPS complete, ready for setup. The customer supplies only a 1/4” compressed air line. The unit may be set on the floor adjacent to the sump, or mounted on the machine tool using the CLO-1 magnetic frame (see photo).
Specifications:
| Item No. | TKO-6 | TKO-10 | TKO-14 |
| For Sump Sizes (gallon) | 25-150 | 25-200 | 50-250 |
| Footprint | 14" x 14" (all models) | ||
| Height | 24" | 30" | 36" |
| Weight (empty) | 35 lbs. | 37 lbs. | 43 lbs. |
| Compressed air requirements | 0.5 SCFM @ 20 psig | ||
Accessories:
CLO-1 - "Cling-On" frame with magnets, to mount TKO-6 to side of machine tool
R10-3150 - Replaceable filter element, 150 micron, 10” long
BA-0475 - Optional bag filter with 5 filter bags
RAP-25 - Pack of 5 25-micron filter bags for BA-0475
Additional Inlet Devices:
- # 555-05 - Compact floating inlet device
- # 555-06 - Fixed inlet device (Requires only 3" diameter access hole)
- # 555-07 - Floating inlet device
- # 555-17 - Small floating inlet device
