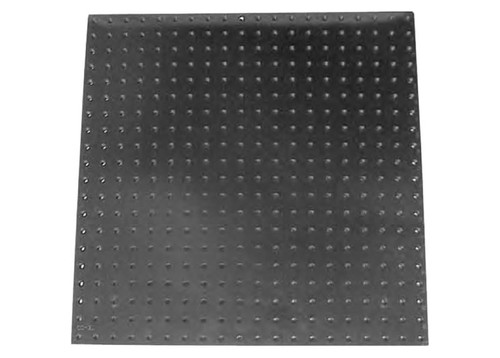

TE-CO Aluminum Fixture Plates

The purpose of the fixture plate is to provide a staging area to build part fixtures. Basic 3-2-1 fixturing holds true for most CMM fixturing applications, although the clamping force required to fixture parts when inspecting with a CMM is significantly less than what is required for machining. Most CMM fixtures require only light pressure clamping to secure the part in a fixed position. Our soft touch clamps are perfect for clamping in CMM fixturing applications.

• Alpha numeric grid pattern
• Black hard coat anodized
• Custom sizes quoted upon request

For TE-CO CMM Basic Fixturing Kits Click Here
