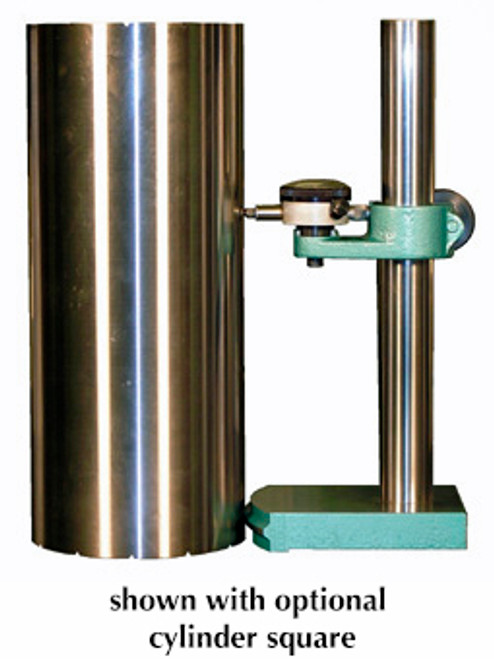

Taft-Peirce Comparator Square - 9146-1

• Made in U.S.A.
• Base made of hardened stainless steel, 5" x 3-1/2" x 1" thick, serrated on the bottom for self-cleaning action and lapped flat for positive surface plate contact.
• Column made of hardened stainless steel, 11-1/16" x 1-1/4" diameter.
• Indicator bracket made of seasoned cast iron, with a slot that allows 1/8" horizontal adjustment of the indicator.
• 1-11/16" diameter AGD Group 1 dial indicator with adjustable bracket-type back, 0.0001" graduations & 0.025" range with 0-5-0 reading dial.
• Comes complete with indicator in a finished wooden case with hinged cover.
• Length: 5”
• Width: 3-1/2”
• Height: 12-1/16”
• Usable Height Range: 2-1/8” to 11-7/8”
• Weight: 17 lbs.
