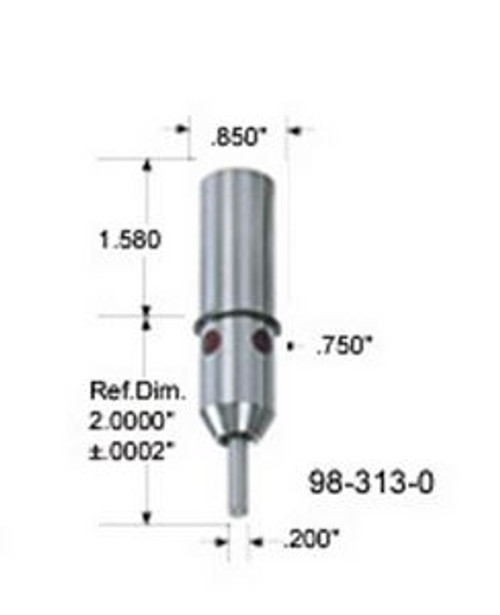

Precise Electronic 3D Sensor - TAC-313

• A New concept for fast and accurate "zero" finding and starting point for all three axes x, y, z.
• Made of high quality tool steel hardened to RC60, precision ground on all surface.
• Operate in vertical or horizontal position.
• Over travel safety zone in all three axes:
• x,y - .200 inch or 5 mm
• z - .200 inch or 5 mm
• Repeatabilitiy ± .0005 inch or ± 0.015 mm

X & Z Finder For CNC Turning Center

• Feed tool toward probe on "x" or "z" axes.
  When a contact is made betten tool and probe red light will illuminate.
• ON "X" Axis - Half diamter of probe (.100" indicate exact center location.
• ON "Z" Axis - Redlight indicateds 2.000 ± .000" / 50 mm ± 0.006 from reference surface.

X, Y, Z Finder For Machining Center

• ON " X and "Y" Axis - Feed carefully toward worpies. When a contact is made between probe and workpiece, red light will illumincate. Half diameter of probe (.100") inidicates exact center of machine spindle.
• ON "Z" Axis - Red light indicates 2.0000" ±.0002 / 50 mm ± 0.006 from reference surface
