NTM Smart Flow Swiss Tool Holder, Type SCLCR - SW-SCLCR-103C

Brand:

(No reviews yet) Write a Review
SKU:
SW-SCLCR-103C

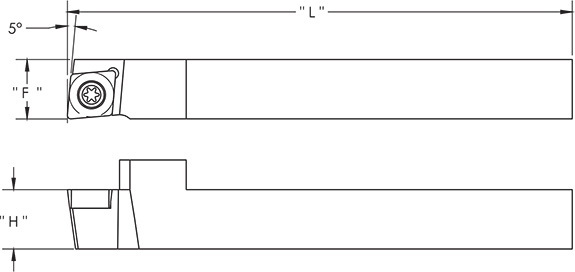

Shank:
0.625
L<br>over insert:
4.25
F<br>over insert:
0.625
H<br>over insert:
0.625
Insert Screw:
TS-4
Insert:
CCMT 32.52

NTM Smart Flow Swiss Tool Holder


Type - SCLCR

  • Turning & Facing
  • Uses CCMT insert

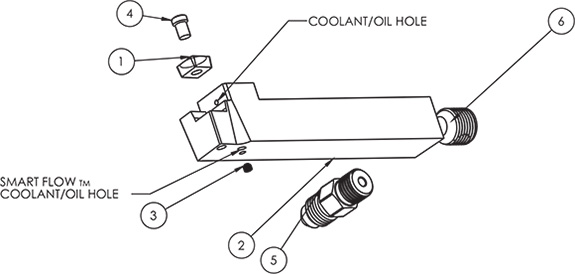

Innovation speaks loudly and NTM has captured the leading edge of Swiss Tooling with our Patent Pending Smart Flow tool holder. This tool will not only deliver cutting oil to the tip of the insert, but will also direct a stream of oil towards the next tool station. This allows for fluid to be directed at an additional tool and keep chips out of the work zone.


As a part of our maintained inventory, NTM, Inc carries smart flow Swiss tools, with functionality as a tool holder in Swiss style machines. This indexable tool features OD turning and coolant thru fabrication for high performance, reduced heat, and improved chip removal. Even when inactive, coolant is still being applied to the chips on the tool.

Available insert styles include 80° diamond, 55° diamond, and 35° diamond, with possible shank sizes of 1/2" and 5/8"

Quality and accuracy are ensured with our highly developed protocol of surface finish testing, hardness testing, and an integrated statistical process control and internal QC program including material certifications. For more details about the smart flow Swiss tools, please see the table below or call us directly.


Smart Flow Swiss Tool Capabilities

Function Tool Holder
Features Coolant Thru
OD Turn
Indexable
Machines Swiss Style
Insert Styles 80° Diamond
55° Diamond
35° Diamond
Shank Size 1/2 in
5/8 in
Inspection Coordinate Measuring Machine (CMM)
Granite Plates
Testing Surface Finish
Hardness
Quality Control NTM Quality Control Program
Documentation Material Certifications
Additional Services Sawing
Grinding
Sandblasting
Laser Marking
Welding
Assembly
Outside Services Coating
Painting
Production Volume Low to High Volume Production


Additional Information:

Industry Focus Defense
Aerospace
Medical
Automotive
Off-Road
Highway
Intended Applications Cutting Tools
Stubby Tooling
V-Blocks
Industry Standards ISO 9001:2008 Certified
Certified Supplier to BAE Systems
Certified Supplier to Alliant Tech Systems
Woman Owned Business
File Formats SolidWorks
Virtual Gibbs








NTM Smart Flow Swiss Tool Holder, Type SCLCR
