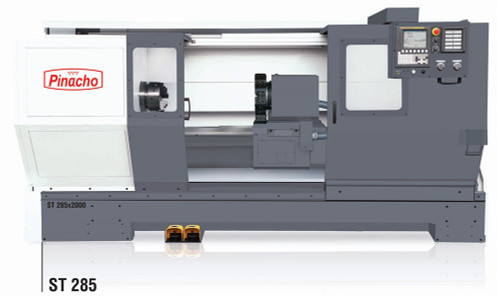

Metosa/Pinacho Lathe Series ST - ST285-2480
The new range of ST series CNC lathes are designed to satisfy most of the customer needs and demands. The machines are manufactured with the best quality components and materials. Pinacho machines are distinguished for its rigidity, accuracy & fl exibility for turning all kind of parts which are simpler, complex in nature as well as precise.
Due to the ease of use and flexibility, you can adapt these machines with any accessories like different Chuck Size, Live Tool turret, Larger Spindle bore, Hydraulic Steady rest and parts collector.
Standard Accessories:
- Automatic 8 stations Turret with 4 tool holders
- Electronic handwheel for the X and Z axis
- Servo spindle motor
- Enclosure as per CE regulations
- Chip collecting tray
- Coolant equipment
- Automatic lubrication for the slide ways
- Main spindle reducing bush and fi xed centre
- Work light
- Levelling plates
- Instruction manual
- C E Compliant
Specifications:
| Model | ST285 |
| Control - Siemens 828D Basic T (Options: Fagor 8055i & Fanuc Oi Mate - TD) - Digital CNC | |
| Centre Distance | 80" |
| Centre Height | 11" |
| Swing over bed | 24" |
| Swing over carriage | 21" |
| Swing over cross slide | 16" |
| Cross slide travel | 11-3/4" |
| Length of carriage | 21-3/4" |
| Length of cross slide | 23-1/2" |
| Bed width | 14" |
| Headstock Main spindle bore | 3" |
| Main spindle nose / Camlock | A2 - 8 / 8 |
| Main spindle morse taper (MT) | 5 |
| Speed range (RPM) | 0 - 2500 |
| Working feed Z, X (mm/min) | 0 - 7500 |
| Rapid traverse Z (m/min) | 12 |
| Rapid traverse X (m/min) | 15 |
| Z - axis ball screw Ø | 40 / 10 |
| X - axis ball screw Ø | 20 / 5 |
| Tail stock barrel Ø | 3-3/4" |
| Tail stock barrel travel | 8-1/2" |
| Tail stock morse taper (MT) | 5 |
| Number of stations | 8 |
| Tool sank | 1" |
| Boring bar | 1-1/2" |
| Position accuracy | 0.01 |
| Repeatability | 0.01 |
| Fixed Steady capacity | 7-1/4" |
| Follow Rest capacity | 5" |
| Main Motor power (kw) | 11 |
| Pump Motor power (kw) | 0.37 |
| Discharge (lpm) | 25 |
| Capacity of coolant tank (lts) | 151 |
| Overall Dimensions | |
| Length | 151" |
| Width | 57" |
| Height | 74" |
| Weight (Lbs.) | 6548 |
| Acceptance Accuracy | DIN 8605 |
