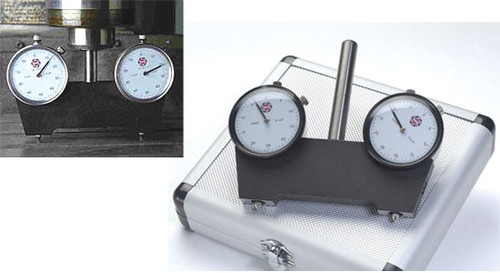

Spindle Squares, All Steel
- Fully assembled with two AGD 2 or AGD dial indicators,.001", .0005", or .01mm graduations.
- Self Calibrating ? no other tools, shims, blocks etc. required to calibrate
- Large 2-1/4" or 1-1/4" diameter dial indicators for easy reading; .250 or .125"total range.
- Patented.
- 4" between contact points
- Ground surface, Solid Steel Construction of body
- Size is about 6 3/4 wide and 5 1/2 from top of shank to end of contact points
- Accuracy to .001 inch
- Weight is about 4 lbs. for shipping, with custom case.
Specifications:
| Product # | Graduation | Total Range | Distance to Centers | Dial Diameter |
| NSS-001 | .001" | .250" | 4" | 2-1/4" |
| NSS-002 | .0005" | .125" | 4" | 2-1/4" |
| NSS-003 | .0005" | .125" | 3" | 1-1/4" |
| NSS-004 | .01mm | 2.5mm | 101mm | 2-1/4" |
