SPI Dial Test Indicators (Horizontal)

Features

  • Horizontal and Vertical type
  • Universal positioning capability
  • Fully jeweled movement
  • Easy to read dial
  • Satin chrome finish

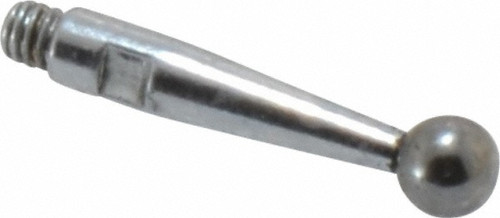

  • Contact point: 0.080" dia. x 1/2" length
  • Contact point pivot: ±100 degrees
  • Dovetail stems: 5/32" (8 mm) and 3/8" (6 mm) dia
  • Certificate of calibration traceable to NIST
  • furnished in fitted case

Sets Include:

  • Indicator, 2 contact points, universal clamp, height gage bar, 5/32" and 3/8" dia.
  • Dovetail extensions and fitted case

Specifications:



Part No.

 Range

 Grad.

 Reading

Dial Dia

 Dial Color

 14-659-7  0.008"  0.0001"  0-4-0  1 x 1/4"  White
 14-655-5  0.020"  0.0005"  0-10-0  1 x 1/4"  White
 14-836-1  0.030"  0.0005"  0-15-0  1 x 1/2"  White
 14-837-9  0.030"  0.0005"  0-15-0  1 x 1/2"  Black
 14-662-1  0.2 mm  0.002 mm  0-100-0  32 mm  White
 14-665-4  0.5 mm  0.01 mm  0-25-0  32 mm  White
 14-668-8  0.8 mm  0.01 mm  0-40-0  32 mm  White
 14-672-0  1.0 mm  0.01 mm  0-50-0  32 mm  White
