Smart Tweezers ST5L Iskra LED Tester - ST52LAD

Main Features:

• Convenient one-hand operation
• Ideal for Surface Mount Devices
• Automatic LED polarity detection and display
• Forward drop voltage display
• Dedicated mode for testing bi-directional LEDs
• Manual polarity preset modes
• Adjustable constant test current 1-30mA
• Adjustable test duty cycle 10-1000 mSec
• LED visual brightness verification
• LED visual color verification
• OLED Display
• Integrated Li-Ion battery

Smart Tweezers® Iskra™ is a specialized solution for testing and verification of SMD and throughhole LEDs. The device design combines a pair of high quality gold-plated tweezers and a digital adaptive LED tester in a compact, lightweight, battery powered instrument.

Testing Surface Mount and Throughhole LEDs

• Surface mount devices are usually more difficult to test and identify SMD than conventional components due to their size. Smart Tweezers® Iskra™ gives users an easy way to test and verify various types of LEDs even already placed on boards. The probe can also be used to test throughhole LED.

Automated Measurements

• Smart Tweezers Iskra™ performs automatic LED polarity detection (for single-direction LEDs) using a unique safe adaptive test algorithm. After LED polarity detection Smart Tweezers Iskra™ lights the LED at the preset test current value and at the set current pulse duration.

During the testing cycle the device displays test current value, polarity indicator, forward drop voltage across LED and the current pulse duration.

Bi-directional LED Measurements

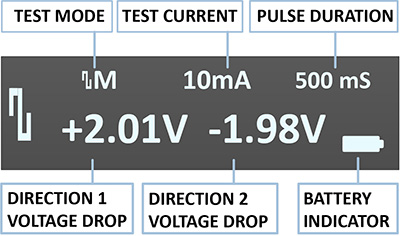

• When testing bi-directional LEDs Smart Tweezers Iskra™ displays forward voltage drop for each direction.

During the testing cycle the device lights up each LED direction at the preset test current value and at the set current pulse duration.

Preset Polarity LED Testing

• Smart Tweezers Iskra™ can be switched into preset polarity mode. In the mode the handles get fixed polarity and the LED tested either by rising or falling test signal.

Built-in Li-Ion Polymer Rechargeable battery

• Smart Tweezers Iskra™ comes equipped with a built-in high-capacity Li-Ion rechargeable battery. Micro USB charging cord and power supply (USA and Canada only) are included. Smart Tweezers Iskra™ can be charged from any standard USB port or USB wall charger.

Ergonomic Design and Convenient Controls

• Default settings of the test current and the pulse duration can be modified by the joystick-type control.

Warranty

• 1 year from the purchase date. Advance replacement option is available.

This Smart Tweezers Iskra™ LED Tester kit includes:

• ST52LAD unit
• Straight test leads (installed)
• Hard carrying case
• Universal 110-240V AC Adapter
• Micro USB cable for charging from a USB port

Click to view the Data Sheet
