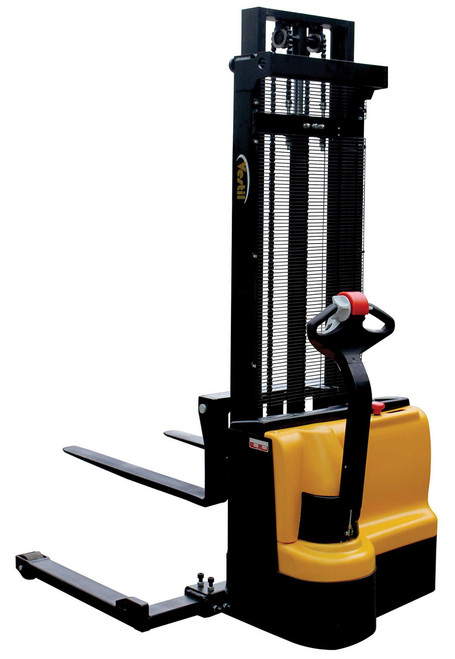

Vestil Double Mast Stacker with Powered Drive & Powered Lift - S-118-FF-DM
Transport loads throughout warehouse facilities quickly and with less effort!
Double Mast Fully Powered Electric Stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V, 78-85Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a level of operator protection which is unmatched by any unit on the market today.
Standard Features:
- Electromagnetic brake with automatic dead-man feature
- Safety-enhancing emergency reverse belly switch
- Thumb wheel throttle offers infinite forward & reverse speeds
- Uniform weight capacities up to 2,200 lbs.
- Ergonomic tiller head assembly has fingertip switches
- Adjustable forks and straddle legs for lifting multiple pallet sizes
- (2) 12V, 75-85 AH lead acid deep cycle batteries included
- 24V DC drive and lift motor
- Battery charger
- Battery level gauge
- Horn is included standard
Specifications:
| Model | Fork Size (W x L) | Lowered Height | Raised Height | Uniform Capacity 0"-62" RH | Uniform Capacity 62"-118" RH | Uniform Capacity 118"-150" RH | Wt. (lbs) |
| Fixed Forks Over Fixed Support Legs (works with skids only) | |||||||
| S-118-FF-DM | 26-3/4" x 42" | 3-3/8" | 118" | 2,200 lbs. | 1,500 lbs. | - | 1381 |
