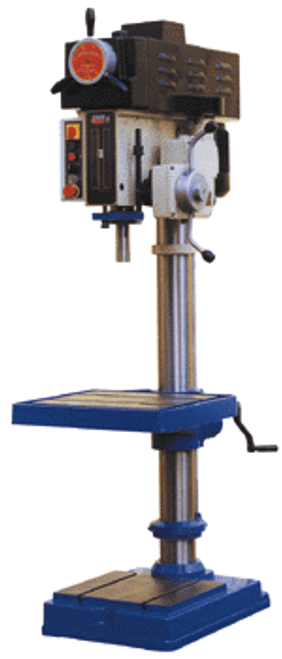

This heavy duty, power feed variable speed drill press is now available in an economical package, capable of handling a wide range or your drilling and hole finishing operations. Ideal production, tool room, maintenance department, fabri shop or training school applications and built for continuos use.
Features:
- 2 speed motor vari-speed range: 150-2000 RPM's
- Spindle power down feed by 4 step feeds : 0.10mm -0.15mm - 0.23mm -0.30mm per revolution.
- Deluxe handle knobs.
- Deluxe belt cover.
- Massive 3" diameter quill provides rigidity during operation.
| Specifications: | |
| Drilling capacity | 1-1/2" |
| Swing | 18" |
| Max. distance spindle to table | 38-1/2" |
| Max distance spindle to table | 39" |
| Spindle taper | MT#4 |
| Spindle travel | 6-1/2" |
| Column diameter | 4-1/2" |
| 4 step power down feed | 0.01 - 0.15 - 0.23 - 0.30 |
| Range of spindle spds. | 150-2000rpm |
| Table size | 21-1/4" x 18-1/2" |
| T-slot size/number | 5/8" |
| Motor 3 phase | 1-1/2 H.P. |
| Net/Gross weight | 615/685 lbs. |
| Overall machine height | 74" |
With Out Power Down Feed
