Styli Centres

Styli centres are designed to provide maximum probing flexibility with a single probe, allowing custom stylus configurations.

View Specifications:

• A-5000-3627 - Star Centre, M2 Thread

Datuming Discs

Tool setting styli are fitted with a precision ground tip to ensure high squareness and parallelism.

View Specifications:

• A-2008-0382 - Datum Disc

Break Stems

Break stems are designed to offer extra protection for tool setting probes
and cutting tools in the event of a crash.

View Specifications:

• A-5003-0661 - M4 Thread, L 15.2 mm
• A-5003-5171 - M4 Thread, L 15.2 mm - For TS27R only
• M-2048-2093 - M4 Thread, L 13.5 mm
• M-2085-0069 - M4 Thread, L 12 mm
• M-5000-7582 - M4 Thread, L 8 mm

Stainless Steel Styli Extensions

Extensions are designed to be used when measuring very deep features and bores or when probing points with limited access. Stainless steel extensions offer excellent rigidity and are ideal for applications where weight is not critical.

View Specifications:

• M-5000-3592 - M3 Thread, L 20 mm
• M-5000-3593 - M3 Thread, L 35 mm
• M-5000-3647 - M2 Thread, L 10 mm
• M-5000-3648 - M2 Thread, L 20 mm
• M-5000-4162 - M2 Thread, L 30 mm
• M-5000-7583 - M4 Thread, L 10 mm
• M-5000-7585 - M4 Thread, L 20 mm
• M-5000-7586 - M4 Thread, L 30 mm
• M-5000-7633 - M3 Thread, L 10 mm
• M-5000-7634 - M2 Thread, L 5 mm
• M-5000-7779 - M2 Thread, L 40 mm

Carbon Fibre Styli Extensions

Extensions are designed to be used when measuring very deep features and bores or when probing points with limited access. Carbon fibre extensions are lightweight and ideal for applications where thermal stability is essential.

View Specifications:

• A-5003-2280 - M2 Thread, L 40 mm
• A-5003-2281 - M2 Thread, L 50 mm
• A-5003-2282 - M2 Thread, L 70 mm
• A-5003-2283 - M2 Thread, L 90 mm

Ceramic Styli Extensions

Extensions are designed to be used when measuring very deep features and bores or when probing points with limited access. Ceramic extensions are lightweight yet very stiff and offer built-in crash protection.

View Specifications:

• A-5000-7727 - M4 Thread, L 100 mm
• A-5000-7754 - M4 Thread, L 30 mm
• A-5000-7755 - M4 Thread, L 50 mm
• A-5003-0070 - M2 Thread, L 30 mm
• A-5003-0071 - M2 Thread, L 40 mm
• A-5003-0072 - M2 Thread, L 50 mm

Ceramic Adaptors

Stylus adaptors are designed to allow styli with different thread sizes to be built into stylus configurations. A ceramic stem is lightweight yet very stiff and offers built-in crash protection.

View Specifications:

• A-5000-7751 - M4 to M3, L 50 mm
• A-5000-7753 - M4 to M3, L 100 mm

Stainless Steel Adaptors

Stylus adaptors are designed to allow styli with different thread sizes to be built into stylus configurations.

View Specifications:

• M-5000-4163 - M3 to M2 Thread, L 5 mm
• M-5000-4164 - M2 to M3 Thread, L 7 mm
• A-5004-7595 - M4 to M2 Thread, L 5 mm

Silver Steel Cylindrical Styli

Cylinder styli can be used in situations where correct contact with a ball stylus cannot be guaranteed, such as applications with sheet metal, pressed components or thin work pieces. Silver steel tips are heat treated and precision ground to a high tolerance.

View Specifications:

• M-5000-4153 - M2 Thread, L 12.75 mm

Spherically Ended Cylinder Styli

Cylinder styli can be used in situations where correct contact with a ball stylus cannot be guaranteed, such as applications with sheet metal, pressed components or thin work pieces. A stainless steel stem offers excellent rigidity and is ideal for applications where weight is not critical.

View Specifications:

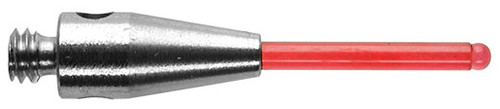

• A-5000-7812 - M2, 2 mm dia, L 21.2mm
• A-5000-8876 - M2, 1 mm dia, L 15 mm
• A-5000-8877 - M2, 1.5 mm dia, L 15 mm
• A-5003-0074 - M2, 2 mm dia, L 40 mm

Straight Styli

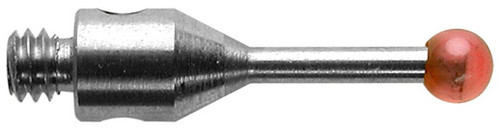

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A stainless steel stem offers excellent rigidity and is ideal for applications where weight is not critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Put any straight styli part number in the search box to see additional specifications & pictures.

Measurements listed below for straight styli.
