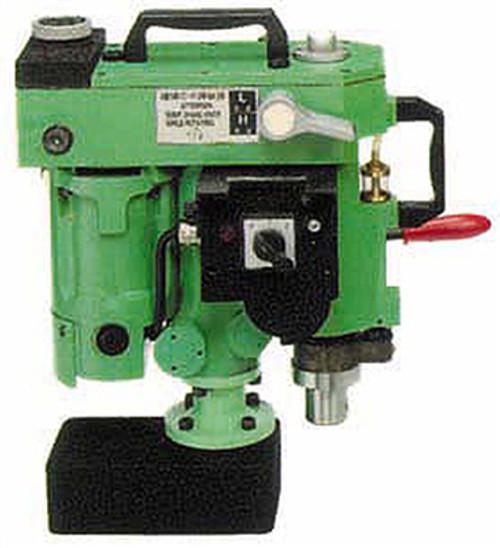

Precise Portable Magnetic Drilling/Tapping Stand - PM-A22S

• All the drill-sleeves, tapper set, and the clamp set of hole cutter are designed with a rapid adaptor to streamline production
• It is designed for tapping, perforating, and drilling by using twisting-drill and center-free-drill. With these 3 functions are very convenient for outdoor work
• Most suitable for cutting workpieces that are not easily to be moved. Workpieces are like large steel plate, steel skeleton of building and bridge, heavy- duty machine ...etc.

Specifications:

• Power AC: 110V, 50/60Hz
• Motor Rated Output: 1350W
• Motor rated Ampere: 12A
• Speed without Load: 300/750 RPM
• Drill Capacity: 1/16” - 7/8”
• Drill Hole Travel: 31/4”
• Body Movable Size: 315/16”
• Turning Degree: 60º
• Y-Axis Transversal Move: 0.39”
• Magnetic Size: 4.13” x 7.09” x 2.76”
• Magnetic Force: 8820N
• Height: 18.11”
• Weight: 60 lbs.
