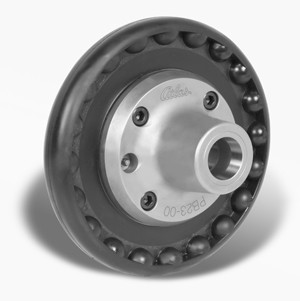

PBA Front Hand Wheel Quickie 5C Collet Chucks
Pratt Burnerd America 5C Collet Chucks
- Fast and easy, front hand wheel operation
- Reduces operator fatigue
- Quick Change over Chuck to Collet Chuck - No linkages or drawtubes
- For 5C collets
- One year warranty
- Accurate-Maximum cone TIR .0005"
- Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper
- Hand wheel teeth nitrided for longer life
- Body nickel plated for corrosion resistance
| Plain Back Chuck | Specifications |
| Item No. | PB23-00 |
| Desc. | 5C-PB |
| Collet Type | 5C |
| Round Cap. | 1.06 |
| A | 9.0* |
| B | 2.25 |
| C ** | 4.25 |
| D | 5.5 |
| E | 5 |
| F | 4.12 |
| Weight | 19 |
** Dimension C is chuck without spindle adapter mounting plate. Add approximately 1.125" to dimension C. If exact ‘B’ dimension with mounting plate is required contact factory.
| D Type Cam-Lock Chuck | | Item No. | Spindle | Round Cap. | Weight | | PB23-D3 | D1-3 | 1.06 | 22 lbs. | | PB23-D4 | D1-4 | 1.06 | 22 lbs. | | PB23-D5 | D1-5 | 1.06 | 22 lbs. | | PB23-D6 | D1-6 | 1.06 | 25 lbs. | | PB23-D8 | D1-8 | 1.06 | 30 lbs. | | PB23-D11 | D1-11 | 1.06 | 35 lbs. | | | A Type American Standard Chuck | | Item No. | Spindle | Round Cap. | Weight | | PB23-A4 | A1-4 | 1.06 | 22 lbs. | | PB23-A5 | A1-5 | 1.06 | 22 lbs. | | PB23-A6 | A1-6 | 1.06 | 25 lbs. | | PB23-A8 | A1-8 | 1.06 | 28 lbs. | | PB23-A11 | A1-11 | 1.06 | 33 lbs. | |
| L Type American Standard Chuck | | Item No. | Spindle | Round Cap. | Weight | | PB23-L00 | L00 | 1.06 | 23 lbs. | | PB23-L0 | L0 | 1.06 | 25 lbs. | | PB23-L1 | L1 | 1.06 | 35 lbs. | | PB23-L2 | L2 | 1.06 | 40 lbs. | | | Threaded Mount Chuck | | Item No. | Spindle | Round Cap. | Weight | | PB23-41 | 1-1/2-8 | 1.06 | 23 lbs. | | PB23-42 | 1-3/4-8 | 1.06 | 23 lbs. | | PB23-43 | 2-1/4-8 | 1.06 | 23 lbs. | | PB23-44 | 4° Taper | 1.06 | 25 lbs. | | PB23-45 | 2-3/16-10 | 1.06 | 23 lbs. | | PB23-46 | 2-3/8-6 | 1.06 | 23 lbs. | |
