OPTI-FLEX QCZ-2000 MANUAL STAGE SYSTEM
Optiflex QCZ-2000 "Granite Z" Inspection/Measurement Systems

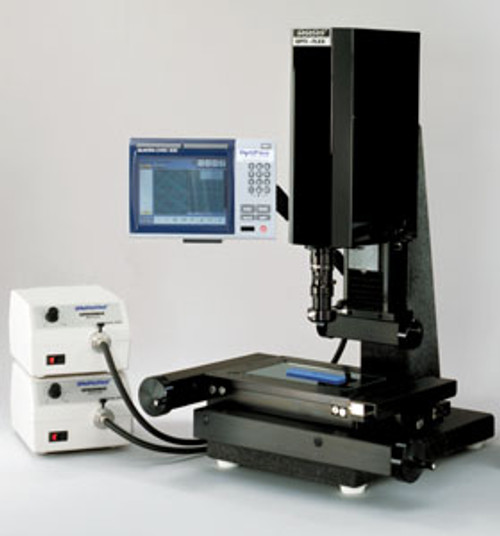

Flexbar presents OptiFlex QCZ-2000 "Granite Z" Series Measurement and Inspection Systems. Offering exceptional value for the money, these systems offer highly flexible and upgradeable capability. The QCZ-2000 Series are compact and easy to use turnkey systems packed with powerful features including state-of-the-art color video, quality zoom optics and the new Metronics QC200 Series Geometric Measurement DRO now featuring Geometric Tolerancing! All Systems Available in 8" x 4" (200mm x 100mm) and 12" x 12" (300mm x 300mm) Formats.
Power: Our most popular Digital Readout based measurement and inspection system. We combined precision hardware with the most powerful digital readout available to give you highly accurate measurements at the touch of a button!
Performance: With OptiFlex "Granite Z" you'll get a durable granite Z-column and base, with a precision machined 4" X 8" or 12" x 12" crossed roller bearing stage. We supply macro magnification of 10x to 120x with a field of view of up to 2 + inches! Our superb color optics combined with high resolution electronics!
SYSTEM FEATURES:
- Solid granite frame and column guarantees strength, accuracy and stability
- Superb full-color high resolution image with zoom optics
- Precision 4" x 8" or 12" x 12" crossed roller bearing stages are available
- High quality macro-zoom lens or micro-zoom lens both with fine focus
- High resolution 2 megapixel camera with image capture
- 23" 1080p high resolution monitor
- Adjustable fiber optic top lighting (bottom lighting optional)
- Built-in digital crosshair generator, moveable & color selectable x-y crosshairs
- Z-Axis measurement available
- Adjustable lens mount dovetail on Granite Z column
- Tooling holes on stage plate for fixturing
- LED lighting available
- Easily upgraded to software-based configurations
- Easily upgraded from manual to motorized or CNC configurations
- The new QC 200 Series geometric DRO
Introducing the New and Improved Quadra-Chek 200 Digital Readout The Industry Standard Worldwide for Measuring and Inspecting Geometric Components
- Bright and crisp LCD with adjustable tilt
- Small footprint with ergonomic design
- Allows operators to accomplish simple to complex measurements quickly and easily
- Print measurement results using serial or parallel printer
- Part programming allows creation, editing, and running of programs in measurement sequence
- Measure guide leads operators through each feature's measurement sequence to assure consistent data
- Measure a part once and operators can repeat the same steps indefinitely
- Measures circles, angles, points and lines
- Feature construction capabilities
