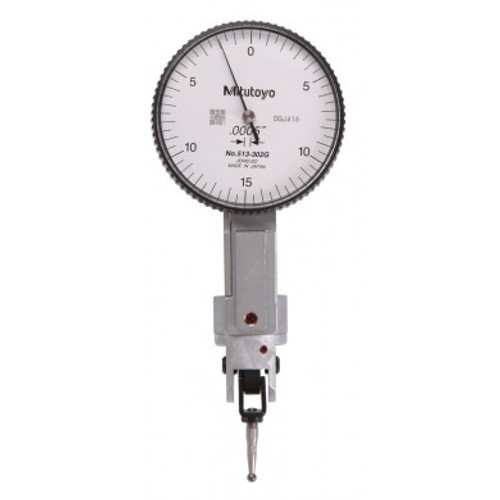

Mitutoyo Vertical Style High Resolution Lever Indicator 513-453

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

• Type Lever
• Dial Type Balanced
• Remarks Anti-magnetic type, Jewelled bearing type
• Specially designed for easy viewing of dial in certain situations.
• The dial faces upward, thus keeping the body of the indicator away from the workpiece when viewing from above.
• No-clutch mechanism for automatic reversal of measuring direction.
• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal.
• The glare-free flat crystal face has a scratch-resistant coating.
• High-sensitivity and quick response due to low-friction jewelled bearings.

Range:  .008"
Accuracy:  ±.0001"
Graduation:  .0001"
Measuring Force:  0.3N or less
Graduation:  0-4-0
