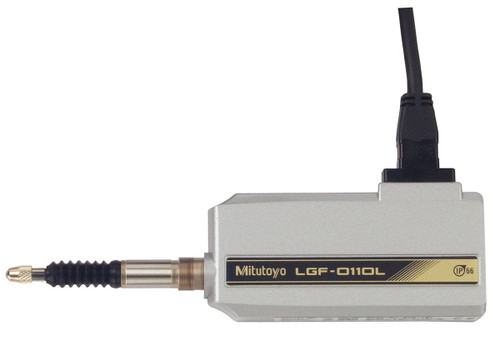

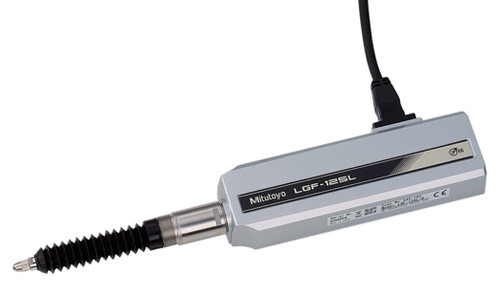

Mitutoyo Linear Gages LGF Series 542

LGF Linear Gauges are low cost electronic measuring probes, especially designed for very restricted measuring situations. Due to the advanced construction of the plunger guidance assembly the LGF is very resistant to external shocks and vibration.
Outstanding protection against dust and splashing water for operation under severe conditions.
Differential, square-wave signal for a wide range of applications. Excellent longevity due to linear ball bearings employed in the plunger unit.
Wide range of application: due to its slim design the LGB can easily be integrated into measuring systems and automated machines.
Long service life due to the linear ball bearing in the plunger assembly.

Applicable Counters:

Specifications:

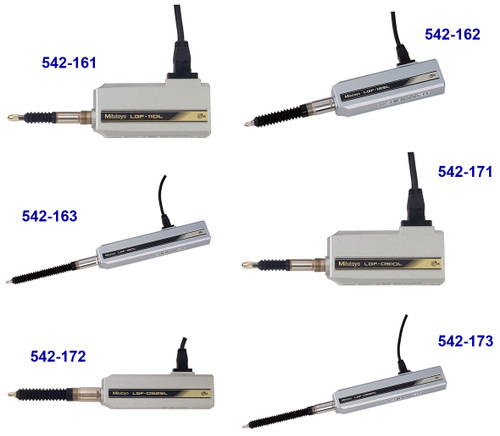

Order No	542-171	542-161	542-172	542-162
Measuring Range	0.4" / 10mm	0.4" / 10mm	1" / 25mm	1" / 25mm
Resolution	0.0005mm	0.001mm	0.0005mm	0.001mm
Measuring accuracy (20°C)	(1.5+L/50)	(1.5+L/50)	(1.5+L/50)	(1.5+L/50)
Quantizing error	±1 count
Measuring Force- Contact Point	upwards - 1.0N or less horizontal - 1.1N or less downwards - 1.2N or lessN	upwards - 1.0N or less horizontal - 1.1N or less downwards - 1.2N or lessN	upwards - 4.0N or less horizontal - 4.3N or less downwards - 4.6N or lessN	upwards - 4.0N or less horizontal - 4.3N or less downwards - 4.6N or lessN
Position detection method	Photoelectric linear encoder
Response speed*1	1500mm/s
Output	90° phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 1000ns for 5µm model, 500ns for 1µm model, 250ns for 0.5µm model
Output square wave pitch	2µm	4µm	2µm	4µm
Mass	260g	260g	300g	300g
Dust/water resistance	Equivalent to IP66 (only gage head)
Contact point	ø3mm carbide-tipped (fixing screw: M2.5 (P=0.45)×5), standard contact point No.901312
Stem Dia	ø8mm	ø8mm	ø15mm	ø15mm
Bearing type	Linear ball bearing
Output cable length	2m (directly from casing)
Connector	Plug: RM12BPE-6PH (HIROSE), Compatible receptacle: RM12BRD-6S (HIROSE)
Operating temp (humidity) range	0 to 40°C (RH 20 to 80%, no condensation)
Storage temp (humidity) range	–10 to 60°C (RH 20 to 80%, no condensation)

Order No	542-612	542-173	542-163	542-613
Measuring Range	1" / 25mm	2" / 50mm	2" / 50mm	2" / 50mm
Resolution	0.005mm	0.0005mm	0.001mm	0.005mm
Measuring accuracy (20°C)	(7.5+l/50)µm	(1.5+L/50)	(1.5+L/50)	(7.5+l/50)µm
Quantizing error	±1 count
Measuring Force- Contact Point	upwards - 4.0N or less horizontal - 4.3N or less downwards - 4.6N or lessN	upwards - 4.9N or less horizontal - 5.3N or less downwards - 5.7N or lessN	upwards - 4.9N or less horizontal - 5.3N or less downwards - 5.7N or lessN	upwards - 4.9N or less horizontal - 5.3N or less downwards - 5.7N or lessN
Position detection method	Photoelectric linear encoder
Response speed*1	1500mm/s
Output	90° phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 1000ns for 5µm model, 500ns for 1µm model, 250ns for 0.5µm model
Output square wave pitch	20µm	2µm	4µm	20µm
Mass	300g	400g	-	400g
Dust/water resistance	Equivalent to IP66 (only gage head)
Contact point	ø3mm carbide-tipped (fixing screw: M2.5 (P=0.45)×5), standard contact point No.901312
Stem Dia	ø15mm	ø15mm	ø15mm	ø15mm
Bearing type	Linear ball bearing
Output cable length	2m (directly from casing)
Connector	Plug: RM12BPE-6PH (HIROSE), Compatible receptacle: RM12BRD-6S (HIROSE)
Operating temp (humidity) range	0 to 40°C (RH 20 to 80%, no condensation)
Storage temp (humidity) range	–10 to 60°C (RH 20 to 80%, no condensation)
