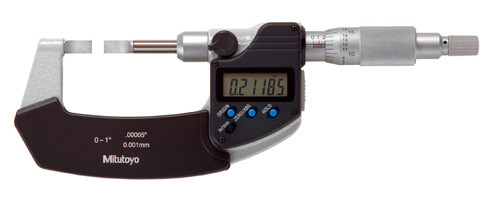

Mitutoyo Electronic Blade Micrometer with SPC Output

SKU: 422-330

• The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas
• With Ratchet Stop for constant force
• Speedy spindle feed of 10mm / .4”/rev. (Quickmike type)
• With a standard bar except 0 - 25mm and 0 - 1" model
• Supplied in fitted plastic case

Technical Data:

• Accuracy: Refer to the list of specifications.
• Resolution: 0.001mm or .00005"/0.001mm
• Parallelism: 3ìm / .00012" for models up to 75mm / 3"
  (3+R/100)ìm for models over 75mm,
  R=max. range (mm) .00016" for 4" models
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery Life: Approx. 1.2 years under normal use

Function of Digital Model:

• Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
