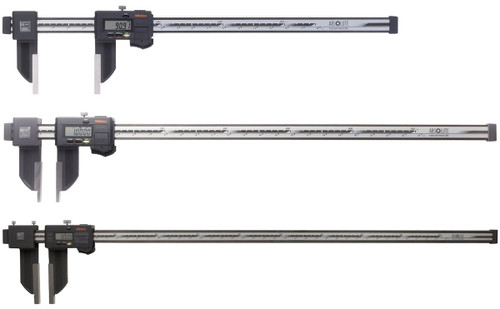

Mitutoyo Digimatic Carbon Fiber Calipers, Series 552 with Optional Jaw Attachments
Features:
- Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics)in the beam and jaws
- Highly durable and easy to handle
- The range of applications can be expanded by using the optional attachments
- Direct readout of ID measurements from the LCD (Offset value can be set easily by pressing the Offset key)
- Preset function for setting a desired starting point
- With SPC data output
- Special model available with ceramic jaws which are suitable for measuring abrasive and magnetic products

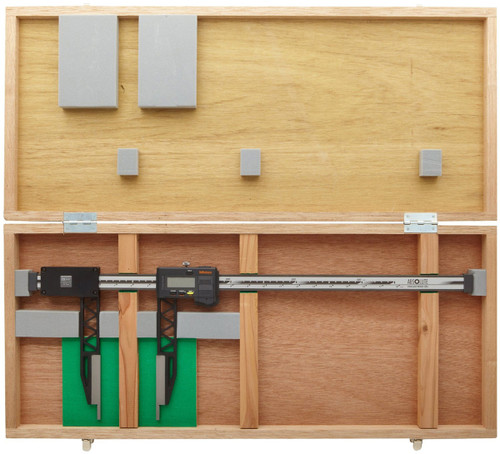

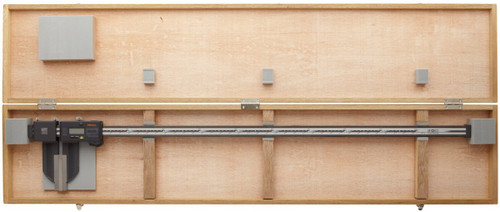

- Supplied in fitted wooden case
Technical Data:
- Accuracy: Refer to the list of specifications
- Resolution: 0.01mm or .0005"/0.01mm
- Display: LCD
- Length standard: Electrostatic capacitance type linear encoder
- Max. response speed: 1600mm/s
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 3,000 hours in continuous use
Function:
- Origin-set, Zero-setting, Presetting, Offsetting, Data hold, Data output, inch/mm conversion (inch/mm models)
- Alarm: Low voltage, Counting value composition error
Optional Accessories:
- 05CZA624:SPC cable with data switch(40" / 1m)
- 05CZA625:SPC cable with data switch (80" / 2m)
- 914055: Centerline attachments (mm)*
- 914056: Centerline attachments (inch)*
- 914057: Pointed ID measuring attachments (mm)*
- 914058: Pointed ID measuring attachments (inch)*
- 914053: Attachment clamps (for models up to 600mm/24" range)
- 914054: Attachment clamps (for models over 600mm/24" range)
* Attachment clamps are required and not available for long jaw type
