Mitutoyo Digimatic Caliper Gages Series 209

Brand:

Mitutoyo Digimatic Caliper Gages Series 209
(No reviews yet) Write a Review

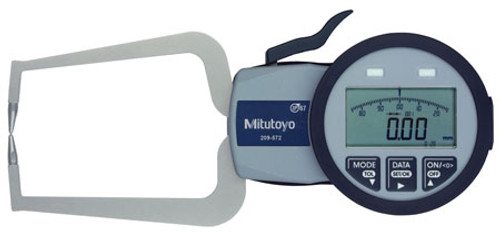

Mitutoyo Digimatic Caliper Gages Series 209

Mitutoyo Digimatic Caliper Gages Series 209

External Tube Thickness Measurement Type

Features:

  • Versatile OD measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions.
  • The Digimatic Caliper Gages provide error-free LCD readings as well as data output for SPC analysis.

Technical Data:

  • Accuracy: Refer to the list of specifications.
  • Resolution: .001”, .0005”, or .0002” 0.01mm, 0.02mm, or 0.005mm
  • Display: Analog / Digital Power Supply: AA Battery (1pc)
  • Battery life: Approx. 350 hours
  • Measuring Force: 0.5 - 1.5N
  • Dust/Water protection level: IP63 Provided with inspection certificate.
  • Function: Zeroset, Preset, Auto power OFF, Inch/Metric conversion, Data hold, Max/Min value holding, Data output
    * Contact type 3,4 does not have max. min. value hold.

Specifications:

Order No. Range Resolution Accuracy Max.
Measuring
Depth L		 Type of
Measuring
Contact
/type of set up		 Measuring
Contact
Length Hb		 Measuring
Contact
Length Hf		 Mass
209-570 0 - 0.39"
0 - 10mm		 .0002"
0.0005mm		 .0008"
0.05mm		 1.37"
35mm		 Ball .059" /
1.5mm dia.
Both / A		 .75"
19.1mm		 .73"
18.6mm		 240g
209-571 0 - 0.39"
0 - 10mm		 .0002"
0.0005mm		 .0004"
0.01mm		 1.37"
35mm		 Disc .24" /
6mm dia.
Both / C		 .85"
21.7mm		 .58"
14.8mm		 175g
209-572 0 - 0.78"
0 - 20mm		 .0005"
0.01mm		 .001"
0.02mm		 3.2"
80mm		 Ball .059" /
1.5mm dia.
Both / A		 .97"
24.7mm		 .97"
24.6mm		 280g
209-573 0 - 0.78"
0 - 20mm		 .0005"
0.01mm		 .001"
0.02mm		 3.2"
80mm		 Ball .059" /
1.5mm dia.
Both / B		 .97"
24.7mm		 .10"
2.5mm		 270g
209-913 0 - 1.18"
0 - 30mm		 .001"
0.02mm		 .002"
0.04mm		 4.5"
114mm		 Ball .12" /
3mm dia.
Both / A		 1.17"
30mm		 1.17"
30mm		 430g
209-914 0 - 1.18"
0 - 30mm		 .001"
0.02mm		 .002"
0.04mm		 4.56"
116mm		 Ball .12" /
3mm dia.
Both / B		 1.17"
30mm		 .16"
4mm		 410g
209-915 0 - 1.18"
0 - 30mm		 .001"
0.02mm		 .002"
0.04mm		 4.56"
116mm		 Disc 1.97" /
50mm dia.
Both / D		 1.42
36mm		 .94"
24mm		 430g
209-918 0 - 1.97"
0 - 50mm		 .001"
0.02mm		 .002"
0.04mm		 6.57"
167mm		 Ball .12" /
3mm dia.
Both / A		 1.17"
30mm		 1.17"
30mm		 490g
209-919 0 - 1.97"
0 - 50mm		 .001"
0.02mm		 .0024"
0.06mm		 6.57"
167mm		 Ball .12" /
3mm dia.
Both / B		 1.17"
30mm		 .18"
4.6mm		 460g
209-920 0 - 1.97"
0 - 50mm		 .001"
0.02mm		 .003"
0.08mm		 6.57"
167mm		 Disc 1.97" /
50mm dia.
Both / D		 1.42"
36mm		 .94"
24mm		 500g
