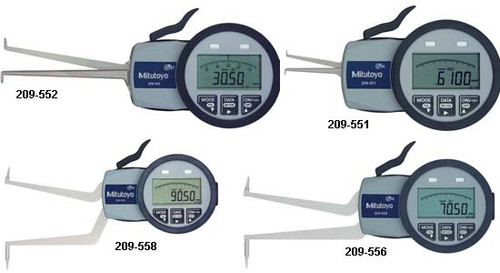

Mitutoyo Digimatic Caliper Gage Series 209 - Internal Tube Thickness Measurement Type

 (Range 0.10 - 0.49" / 2.5-12.5mm)

Versatile ID measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions. The Digimatic. Caliper Gages provide error-free LCD readings as well as data output for SPC analysis.

Technical Data:

Accuracy: Refer to the list of specifications.
Resolution: .001”, .0005”, or .0002” 0.01mm, 0.02mm, or 0.005mm
Display: LCD Analog / Digital
Power Supply: AA Battery (1pc)
Battery life: Approx. 350 hours
Measuring Force: 0.7 - 1.7N
Dust/Water protection level: IP63
Provided with inspection certificate.


Function:

Zeroset, Preset, Auto power OFF, Inch/Metric, conversion
Data hold, Max/Min value holding, Data output
