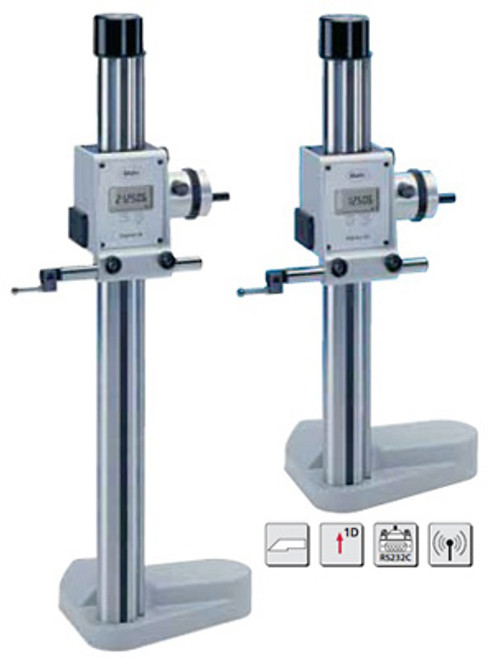

Mahr Height Measuring and Scribing Instrument Digimar 814 N
Features:
With extra rugged, cast iron base with three-point support. To be used on base plates, machine beds and work piece surfaces. Conversion to a 814 G version is quick and easy at any time.
Ideal for measuring:
• Heights
• Center distances between bores and surfaces, widths of ledges, plus marking and scribing of workpieces
Speciications:
Click Here for Technical Data or Specifications
Features:
With extra rugged, cast iron base with three-point support. To be used on base plates, machine beds and work piece surfaces. Conversion to a 814 G version is quick and easy at any time.
- High accuracy
- Incremental inductive measuring system
- Measuring head with an ball bush guide
- Resistance free measuring system
- Large, easy to read digital display
- Measuring and display unit are incorporated in the measuring head
- Easy to operate due to the hand crank on the side of the measuring head
- Constant measuring force; acting upwards or downwards as required
- Measuring head can be locked in position, ideal for scribing tasks
- With fine adjustment
- Data transmission via Opto RS232C interface
- Digital Preset
- Zero setting in any position
- MAX, MIN and MAX-MIN functions
- Enter tolerance limit for 1 characteristic
- Switch between mm/inch
- Mains independent due to being battery operated
- Universal application due to a broad range of accessories
Ideal for measuring:
• Heights
• Center distances between bores and surfaces, widths of ledges, plus marking and scribing of workpieces
Speciications:
Click Here for Technical Data or Specifications
