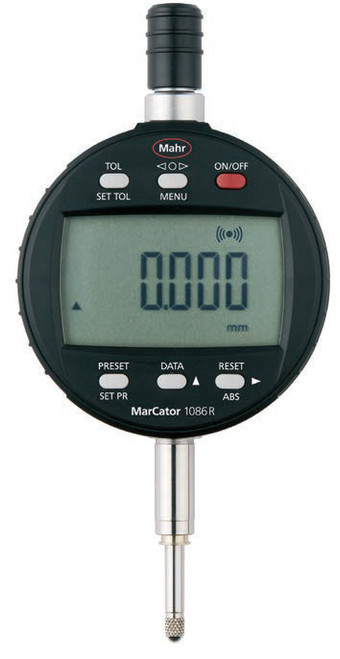

MAHR Digital Indicators MarCator 1086 Ri

An Industry First Indicators with Built-In Transmitters

Eliminate costly external transmitters and reduce your cost more than 50%

Lock function: This prevents unintentional activation of an operating button. Either all the operating buttons or only certain individual buttons can be locked. If a locked operating button is pressed, the “LOC” symbol appears in the display.

Battery service life is 3 years: The new Reference system is extremely energy efficient when the indicator is in standby mode, almost no power is required, thus extending the life of the battery up to 3 years, When Integrated Wireless is deactivated.

Just set once to zero: The new Digital Indicators 1086 Ri are equipped with the innovative Reference system.The zero position only has to be set one time: once it is set, the zero remains stored for all further measurements. Therefore, when the indicator is switched ON or the measuring spindle is moved, the indicator is immediately ready for measurement; thus the need to reset as with a conventional indicator is now obsolete.

Features:

• ON/OFF
• RESET (Set display to zero)
• mm/inch
• Reversal of the counting direction
• P RESET (Allows the entry of any value using set buttons)
• TOL (Enter tolerance limit values)
• ABS (Display can be set to zero, without losing the reference to the Preset value)
• <0> (Tolerance GO / NO GO display mode)
• DATA (when connected with a data connection cable)
• Factor (adjustable)
• Immediate measurement due to the Reference system
• Individual buttons can be locked -Lock Function
• Operating and display unit (bezel) can be rotated 280°
• High contrast LCD with 11 mm high digits
• Operating time approx. 3 years (2000 work. hrs/year)
• Maximum measuring speed1.5 m/s (60”/s)
• Lifter protection cap on the measuring spindle
• MarConnect data output, choose either:
  - USB
  - OPTO RS232C
  - Digimatic
  - Integrated Wireless
• Operating temperature 10 - 40°C
• Class of protection IP42 in accordance to IEC 60529
• Supplied with: Battery, Operating instructions

Accessories for Creating Wireless Data Collection System

# 4102220 - i-Stick Wireless Receiver with MarCom Standard

• Allows for 8 wireless devices per i-Stick and 68 wired devices when used with MarCom Professional

# 4102552 - Software - MarCom Professional 4.0

• Allows for up to 4 i-Sticks per computer

# 4102551 - Software - MarCom Standard 3.1

Click to view the MarConnect Brochure PDF
