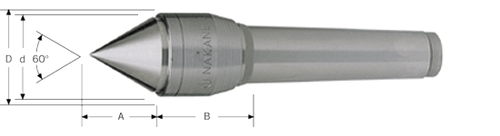

- Exceptionally small head diameter makes this Live Center particularly ideal for use on Copying Lathes and on many applications where the approach to the tools may be critical, as well as in delicate turning operations.
- Two precision needle roller bearings and heavy duty thrust bearing.
- Main parts are made of Bearing Steel and Nickel Chrome Molybdenum Steel, heat treated and precision ground.
- Concentricity within .00012."
| TAPER | 50 RPM: THRUST | 50 RPM: RADIAL | 250 RPM: THRUST | 250 RPM: RADIAL | 500 RPM: THRUST | 500 RPM: RADIAL | 1000 RPM: THRUST | 1000 RPM: RADIAL |
| MT 2 | 616 | 781 | 360 | 462 | 286 | 374 | 226 | 295 |
| MT 3 | 1020 | 1623 | <font face=arial,helvet |
