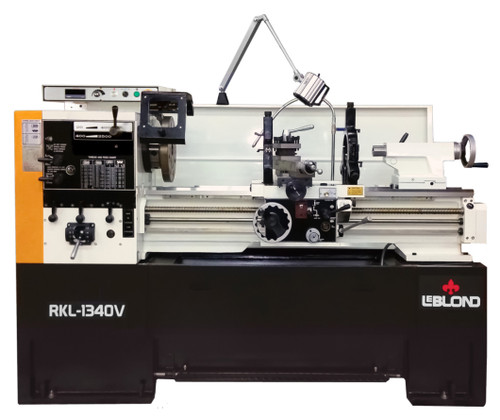

LeBLOND High Speed Precision Lathes RKL1300 Series, Variable Speed w/ Electronic Control
Reliability and performance with a legendary name in machine tools! Try the LeBlond RKL1300 series lathe with a 14" swing in diameter and 40" or 60" distance between centers.
Features:
- 14" swing
- 40" or 60" between centers
- Two speed ranges infinite speeds
- 45 feed selections
- 5 HP
- 3 phase or single phase
- Customized option content
Heavy Duty Spindle:
- The headstock spindle is machined from forged alloy steel. It is hardened, ground and dynamically balanced. Large through hole with convenient D1-6 cam-lock mount. Special attention was given to lubrication channels providing a constant bath of oil to the supporting high grade two precision tapered roller and one precision ball bearing for long life.
Variable Speed Spindle with Electronic Control:
- Two headstock gear ranges that supply a high torque in low range (20 to 400 RPM) and in high range (40 to 2500 RPM). The electronic control panel that is mounted above the headstock provides a RPM LED display, ON-OFF power indicator light, speed control knob, emergency stop push button and spindle jogging push button. The electronic infinitely variable speed is controlled by an AC inverter duty motor. A 1/4 HP electric pump provides the headstock with forced pressure lubrication.
Wide Bed with One Piece Base:
- One-piece machine floor base is made of solid cast iron. Wide bed design is made of Meehanite casting that is vibration stress relieved. Bed ways are induction hardened to HRC 50 and precision ground. Precision hand scraped bed is designed with a removable gap further expanding swing capabilities. The proven LeBlond 2V and flat solid bed structure provides rigidity that assures accuracy and maximum stability. Standard large volume removable chip tray makes for easy chip clean out and disposal.
Standard Equipment:
- 5.0HP Inverter Drive Motor
- Electrics: 230V/3PH/60HZ (other selections available)
- Coolant System with Pump and Reservoir
- Chuck Guard with Spindle Safety Interlock
- Removable Front Chip Pan
- Lockable Main Disconnect Switch
- Halogen Work Light
- Leveling Pads
- Operation Manual & Parts List
- Tool Box & Tools
- Steady Rest with Roller Jaws (6.0" Capacity)
- Follow Rest with Bronze Jaws (3.5" Capacity)
- Telescopic Taper Attachment
- 4-Way Quick Turn Tool Post
- Face Plate (10")
- Safety Red Spindle Brake Pedal
- Full Length Splash Guard
- Dead Center (Qty 2)
- Spindle Center Sleeve: MT6 X MT4 (Qty 1)
Specifications:
| MODEL | RKL-1340V / RKL-1360V | |
| CAPACITY | Swing Over Bed | 14.2" |
| Distance Between Centers | 40" / 60" | |
| Swing Over Carriage | 8.4" | |
| Swing in Gap | 21.0" | |
| Gap Length | 7.3" / 10.8" | |
| Cross Slide Travel | 8.6" | |
| Top Slide Travel | 5.1" | |
| Carriage Width | 20.2" | |
| Carriage Length | 16.2" | |
| Bed Width | 10.3" | |
| HEADSTOCK | Spindle Nose | D1-6 |
| Spindle Bore | 2.1" | |
| Spindle Taper | MT 6 | |
| Infinitely Selections Between Range (RPM): | 20 – 2500 Two Ranges | |
| THREADS | Inch Threads | (45) 2 to 72 TPI |
| Metric Threads | (39) 0.2 to 14 MM | |
| Modular Threads | (18) 0.3 to 3.5 | |
| Diametral Threads | (21) 8 to 44 | |
| Lead Screw Diameter | 1.13" | |
| Lead Screw Pitch | 4 TPI | |
| FEEDS | Longitudinal Feed | 0.0015 to 0.04 IPR |
| Cross Feed | 0.00075 to 0.02 IPR | |
| Feed Selections | 45 | |
| TAILSTOCK | Quill Diameter | 2.1" |
| Quill Travel | 6.0" | |
| Quill Inside Taper | MT 4 | |
| ELECTRICS | Spindle Motor HP | 5 HP |
| Voltage | 230V / 3PH/ 60Hz* | |
| Coolant Motor | 1/8 HP | |
| WEIGHT | Approximate Weight (lbs) | 3200 / 3550 |
| SIZE | Base Footprint | 22.3" x 87" / 107" |
| Recommended Floor Space W x L | 67" x 93" / 112" | |
| SHIPPING SKID | Width x Height | 46" x 70" |
| Length | 95" / 114" | |
