Laguna Tools 18BX Bandsaw
The 18BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18BX is built around a 3HP, 220V motor and 145” (368 cm) blade for consistent results, cut-after-cut, regardless of material.
- Motor: 3HP, 220V, 1 Ph. 12 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter:
- Min-Max Blade Width: 1⁄8″-1 1⁄4″
- Resaw Capacity: 16″
- Throat: 18 “
- Blade Length: 145″
- Disc-Brake with Micro Switch:
- 220V Outlet on Back for Light:
- Window for Tension:
- Window for Tracking:
- Magnetic Blade Tension Guide:
- Worm Gear & Pinion Upper Guide:
- 10 Point Laguna Ceramic Guides:
- Flat Poly-Groove Drive Belt:
- Premium Anodized Insert with Micro Adjustment:
- Dynamically Balanced Cast Iron Wheels:
- Urethane Single Piece Snap-on Tire:
- Cast Table Size: 20″ x 26″
- Table Tilt: -6°, +45°
- Quick-Release Tension:
- Hi/Low Anodized Aluminum Fence: 22 1⁄2″ x 5 3⁄4″ x 1⁄2″
- Table Height: 38″
- Dust Ports: 2 x 4″
- Overall Height: 77 3⁄4″
- Dimensions, Base: 27″ x 20″
- Dimensions Overall: 36″ x 30″
- Dimensions Box: 82″ x 34″ x 24″
- Weight (Net/Ship): 410/460 Lbs.

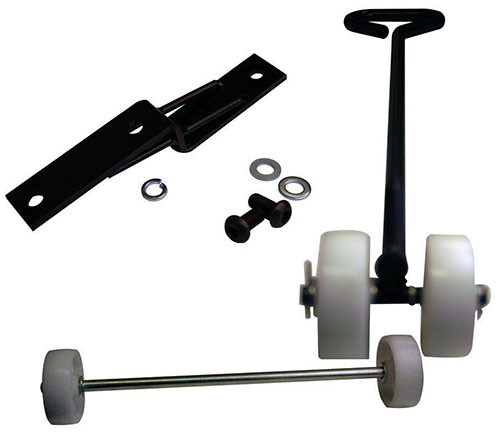

18BX WHEEL SYSTEM
- Foot Operated
- 360° Omni-Directional
- Rubber-Coated Wheels
- Adjustable Rubber Pads
- Oilite Bronze Bushing Allows for Less Friction and Longer Life
- Easy Install with No Drilling Required
- Pedal Raises & Lowers Front Wheel
- Wheels Mounted Outside Frame to Maximize Stability

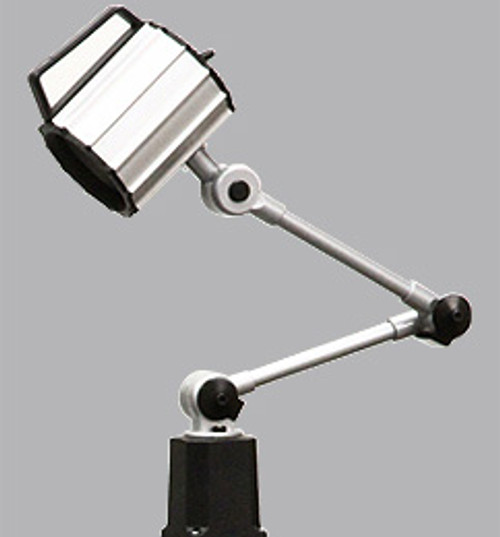

PRO LIGHT SYSTEM
- Swivels 220°
- 12 Volt/50 Watt
- Tilts Vertically 320°
- Built-In Transformer
- Independent ON/OFF
- Ribbed Aluminum Case
- Halogen Hi-Intensity Light
- Bright, Glare-Free Flood Light
- Designed for Even Light Distribution
- Reinforced Glass, Dustproof Design
- Top and Side Cabinet Mounting Position
