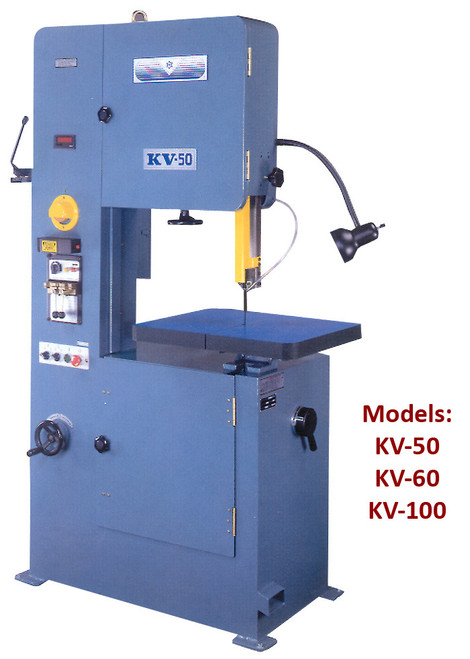

Birmingham/Accord Vertical Band Saw - Floor Model - KV-100
- Large capacity welder
- Blade cutter
- Blade grinder
- Worklamp
- Chip blower
- Variable speed transmission
- Instruction manual and parts list
- Precision Made in Taiwan.
Specifications:
| Model | KV-100 |
| Cutting Throat Depth |
39-3/4" |
| Capacity Max. Work Height |
13-1/2" |
| Table Size | 26" x 27-1/2" 17-3/4"x19-1/2" |
| Table Inclination(4-Ways) |
15" |
| Table Stroke | 13-25/32" |
| Saw Blade Length |
178-5/8" |
| Saw Blade Width |
3-20 |
| Saw Blade Speeds |
Low 65-280 FPM High 400-1640 FPM |
| Butt Welder Capacity |
4.2KVA 1/8"-13/16" |
| Drive Motor | 2 HP, 220V, 3-Phase |
| Net Weight (approx.) |
950 lbs. |
| Gross Weight (approx.) |
1070 lbs. |
| Measurement (L x W x H) |
75-5/8" x 43-5/16" x 84-5/16" |
Click to view the User's Manual
Vertical Band Saw
