KwikMark KwikTurn Cylindrical Fixture

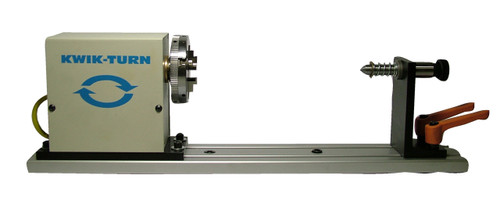

The KwikTurn rotary fixture is ideal for marking around cylindrical or multi sided parts. The modular construction features a base with an adjustable headstock and tailstock. The KwikTurn is the only cylindrical attachment that can accommodate large and miniature products. A hand operated chuck requires no tools and is removable for special tooling applications. The software controls the true surface speed of the diameter, for perfect markings every time. The file based controls include:

  • Serial numbering
  • Date/time/shift coding
  • Graphics
  • 2-D data matrix
  • Straight, angular, arc text
  • Dot, stick or arc fonts

The KwikTurn attachment adds another axis used to mark round parts or multi-sided parts. All of the software features of the Kwikmark System (serializing, date coding, graphics, etc) are retained. Includes: Headstock, Tailstock & Base.

Rotary Fixture

  • For marking around cylindrical parts by turning them during the marking cycle
  • Just enter the diameter and the rotary fixture will “wrap” any text, graphics, etc in perfect proportion around your part.
  • May be used to mark round parts with files that were created for flat parts too!
  • Commands may be entered to execute before and after the cycle.
HEAD STOCK Features
  • Oversized spindle & thrust bearings
  • Pre-loaded drive system
  • Brushless high torque motor
  • Embedded high res motor driver
  • One quick connect cable for operation
TAIL STOCK Features
  • Spring loaded actuation with knob
  • Large .500 diameter center
  • Quick release adjustment handles
  • Easily customized
3 JAW CHUCK Features
  • Hand operated (no tools)
  • Removable (3/4-16 thread)
  • Reversible jaws
  • Grips on OD or ID
  • Machine tool quality
Pneumatic Powered Tailstock OPTION

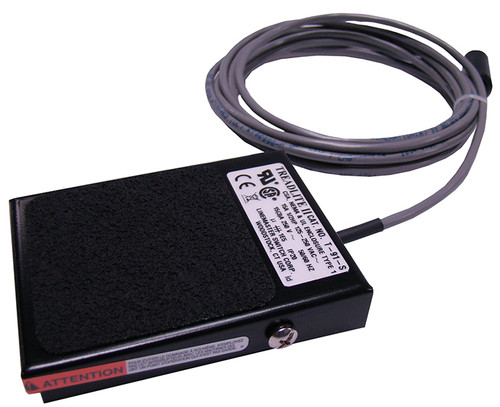

  • Footpedal operated
  • Self contained controls
  • Adjustable force control
  • On board regulator / gauge
