Kanetec Model KYA Magnetic Square Type Blocks

Application:

• Holding tools for marking and light duty machining
• Holding tools for electric discharge machining and wire cutting
• Holding tools for three-dimensional measuring instruments and various measuring systems

Features:

• Workpieces can be held on three faces of top (V face) and both side faces
• On/Off lever is detachable. ( length of each opposite side of hexagonal hole is 8mm )
• They are of waterproof and oilproof const-ruction
• An M8 tapped hole is provided on the top for lifting (KYA-18 only)
• Super high accuracy finish is also available. Please contact us.

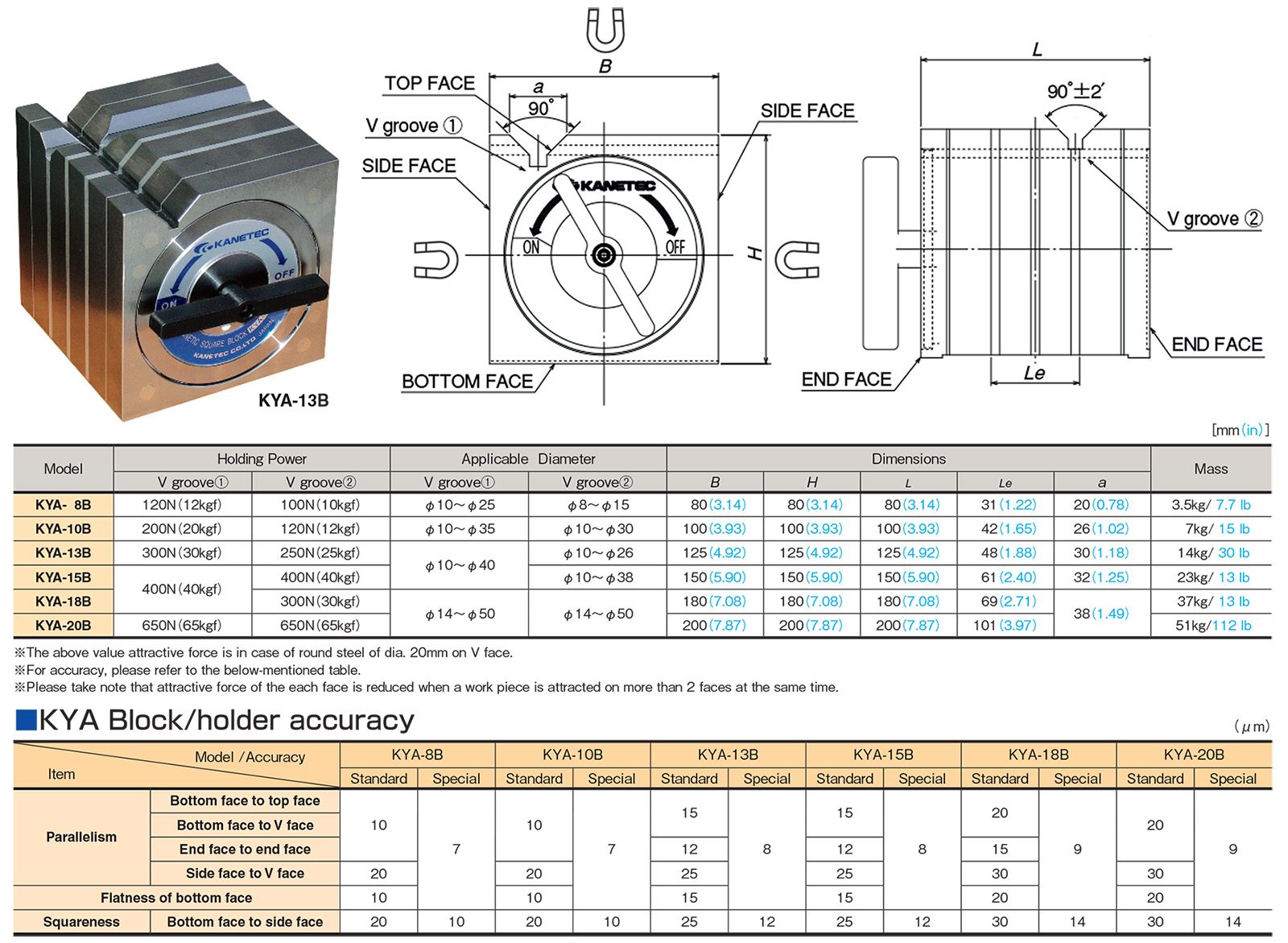

Click to view the KYA Specifications & Dimensions
