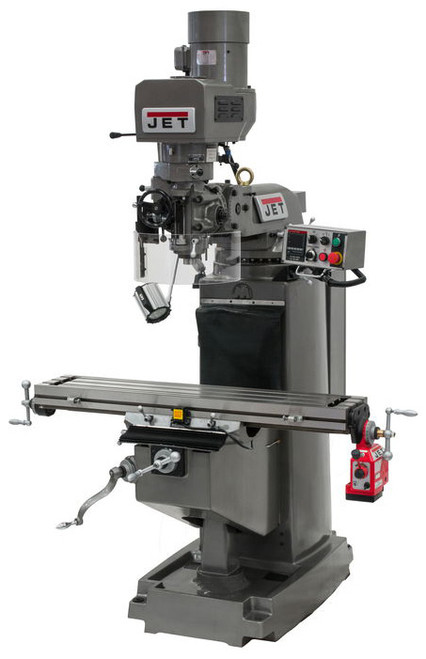

JET CNC Vertical Turret Milling Machines JTM-949EVS CNC, 9" x 49"
JTM-949EVS/230 Mills with 2 or 3-Axis ACU-RITE G-2 MILLPWR CNC
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.
Features:
- Durability
- Certified Meehanite® catings
- Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
- Precision bored and honed milling head
- Spindle head is internally cooled extending bearing, belt and motor life
- Quick spindle feed nut easily adjusts to different depths
- One-piece quill pinion and shaft
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Turcite-B on X and Y-Axis
- Adjustable gibs throughout
- Safety
- For added safety, the JTM-949EVS follows strict guidelines and electrical requirements to be certified by CSA Group
- Swing away spindle guard
- L.E.D. work lamp
- Internal coolant tank built into casting base
- Ease of Use
- Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance
- Inverter Drive System and emergency stop located on a swing away control arm moves all major funtions within the operators reach
- JET exclusive new casting provides an easier solution to leveling the machine without raising it off the floor
- Two 115V outlets on electrical box for DRO or Powerfeeds
- Dual locks on all moveable surfaces
- Chip pan
- Way covers
- Draw bar
- Tool box with tools
Specifications:
| Model | JTM-949EVS CNC | JTM-949EVS CNC |
| Item Number | 690575 | 690576 |
| CNC Package | ACU-RITE MILLPWR® G2 | ACU-RITE MILLPWR® G2 |
| Number of Axis | 2 | 3 |
| Table Size (L x W) | 9" x 49" | |
| Spindle Taper (In. x TPI) | R-8 | |
| Quill Diameter | 3-3/8" | |
| Number of Spindle Speeds | Variable | |
| Range of Spindle Speeds (RPM) | 60 - 4,500 | |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 | |
| Spindle Travel | 5" | |
| Head Movement (Deg.) | 90° R & L, 45° F & B | |
| Max Distance Spindle to Table | 20-3/4" | |
| Distance Spindle to Column (Max.) | 18-1/8" | |
| Distance Spindle to Column (Min.) | 4-3/4" | |
| Collet Capacity | 1/8 - 7/8 | |
| Table Longitudinal Travel | 36" | |
| Table Longitudinal Travel With Powerfeed | 30-3/4" | |
| Table Cross Travel | 12-5/8" | |
| T-Slots Number and Size | 3 and 5/8" | |
| T-Slot Centers | 2-1/2" | |
| Work Table Weight Capacity | 720 lbs. | |
| Travel of Knee | 15-3/4" | |
| Travel of Ram | 15-1/4" | |
| Column Width | 18" | |
| Saddle Width | 11-1/2" | |
| Inverter Type | Delta, B | |
| Overall Dimensions (L x W x H) | 67" x 64" x 86" | |
| Motor (HP) | 3HP, 230V, 3Ph | |
| Weight | 2420 lbs. | |
