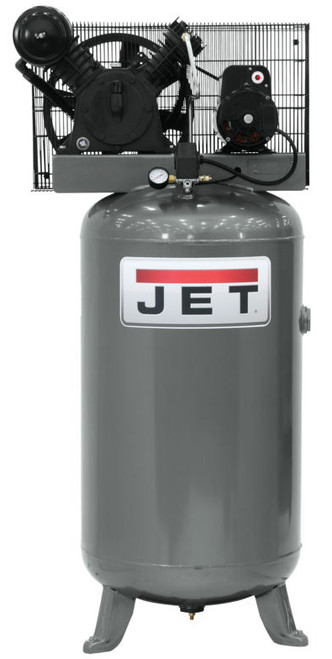

JET 80 Gallon Vertical Air Compressors
JET’s Air Compressors are ideal for general compressed air needs including machine shops, fabricating shops, auto motive service and body shops, fleet maintenance, woodworking shops, farm and general industrial applications. Cast iron pumps, ASME-certified tanks, and industrial-duty motors are essential for reliable performance in demanding environments.
Features:
- 175 PSI maximum operating pressure for applications requiring higher air capacity and pressure
- Two-Stage, Cast Iron Pump design delivers higher pressure and increased air delivery
- ASME-certified tanks meet strict testing and inspection standards
- Similar to an automotive design, JET compressors are reciprocating
- The critical components of the crankcase, crankshaft and cylinders are cast iron for reliability and durability in demanding industrial environments
- The precision machined Aluminum head and valve system dissipates heat quicker for long-lasting performance
- Fully enclosed metal belt guard assures safe operation
- Built-in safety valve and pressure switch for safe operation
- Industrial-duty motors for reliable performance
- Weather-resistant power-coat finish
- Open feet design for ease of drain
- CSA/C US Certification
- Proudly assembled in the U.S.A.
Specifications:
| Model | JCP-801 | JCP-803 | JCP-804 |
| Order Number | 506801 | 506803 | 506804 |
| Tank Size | 80 Gallon | 80 Gallon | 80 Gallon |
| Tank Configuration | Vertical | Vertical | Vertical |
| ASME Certified | Yes | Yes | Yes |
| Maximum Pressure | 175 PSI | 175 PSI | 175 PSI |
| Tank MAWP | 200 PSI | 200 PSI | 200 PSI |
| Displacement (CFM) | 17.3 | 31.4 | 31.4 |
| Air Delivery (CFM) | 16.5 CFM @ 90 PSI | 25.1 CFM @ 90 PSI | 25.1 CFM @ 90 PSI |
| Air Delivery (Max. CFM) | 13.7 CFM @ 175 PSI | 24.0 CFM @ 175 PSI | 24.0 CFM @ 175 PSI |
| Pump Design | Two Stage | Two Stage | Two Stage |
| Pump Material | Cast Iron | Cast Iron | Cast Iron |
| Pump RPM | 1,190 | 1,020 | 1,020 |
| Rated Pump Life | 17,000 Hours | 15,000 Hours | 15,000 Hours |
| Duty Cycle (%) | 80% | 80% | 80% |
| Motor (HP) | 5 HP, 230V, 1 Ph | 7.5 HP, 230V, 1Ph | 7.5 HP, 230/460V, 3Ph |
| Motor Amps | 22 | 31 | 17.9 / 8.97 |
| Overall Dimensions (L x W x H) (In.) | 25 x 42 x 75 | 25 x 42 x 78 | 25 x 42 x 78 |
| Weight (Lbs.) | 429 | 540 | 540 |
