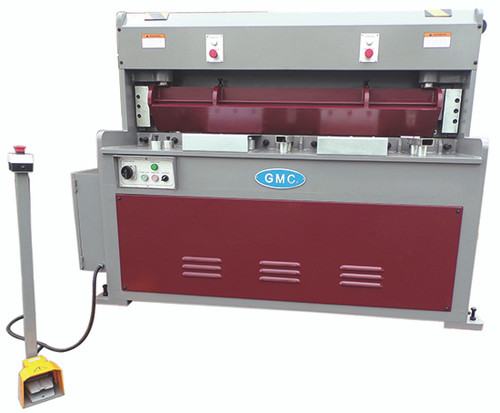

GMC Heavy Duty Hydraulic Shear - HS-0410M
Standard Features:
- ISO 9001 certified
- Taiwan machines
- 24" German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch / metric digital display for “E” models only (36" for HS-1008E only)
"M" models are Manual. - Automatic Quick Change Blade Gap Adjustment (BGA), no lever required
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
Standard Equipment for GMC Heavy Duty Hydraulic Shears:
- 24" German SIKO Front Operated Power Back Gauge with micro adjustment, accuracy 0.004" inch/metric digital display for “E” models
36" SIKO power back gauge is for model HS-1010E only - 24" manual back gauge (one side wheel drive) for “M” models only
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Automatic quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 4-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Optional Equipment for GMC Heavy Duty Hydraulic Shears:
- Safety fence for enclosure of the back side of the machine - $1,150.00
Specifications:
| Model | HS-0410M |
| Cutting capacity Mild steel Stainless steel | 4’ x 10 Ga. 4’ x 14 Ga. |
| Blade length | 4’ 4” |
| Strokes per minute | 12-20 |
| Throat depth | 18” |
| Worktable height | 34-1/2” |
| Front support arm | 24” |
| Back gauge for M model | 24” manual B.G. |
| Blade rake angle | 2 degree |
| Oil tank capacity | 15 Gal. |
| Main motor | 7.5 HP |
| Power B.G. motor | 3/4 HP |
| Machine weight | 4,380 LBS |
| Machine dimensions, inch | 73" x 78" x 63" |
