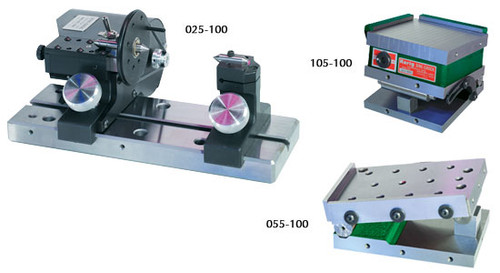

Harig Lectric Centers


Harig's original cylindrical grinding fixture used for precision grinding between centers. Dead center design permits "tenths" accuracies to be easily obtained. Quickly converts a surface grinder to cynlindrical grinding applications for grinding punches, pins reamers, cutters, shanks, and shafts. Hold the piece part in the Lectric-Centers to grind angles, grooves, races, and slots accurately and efficiently. Also can be used for critical inspection. Motorized head and two-speed pulley for fast stock removal. When external grinding between centers on a surface grinder is a must, trust the Lectric-Centers fixture to get the job done accurately. Reliability backed by Harig's trademark service.


Features:

  • Hardened and ground tool steel base allows grinding between centers up to 7"
  • Grind and check parts within 0.00005 TIR
  • Fan cooled motor and 2 speed pulley for efficient operation
  • Interchangeable hardened tool steel centers are male on one end, female on the other
  • Tail-stock taper adjustment allows extremely accurate settings to be obtained
  • Head-stock center is on lever controlled sliding ram and has adjusting screw for spring tension
  • Head-stock and tail-stock are both adjustable for greater flexibility
  • Base-Plate & Tail-Stock witrh addition of rail can be used with Harig fixtures
  • Built-in diamond holder for quick dressing of grinding wheels


Specifications:

Obtainable run-out 0.00005 TIR
Grinding between centers up to 7"
Center height 3.000"
Swing 6"
Motor 115V, 60C
Speeds 180 & 360 RPM
Weight 20 lbs.
