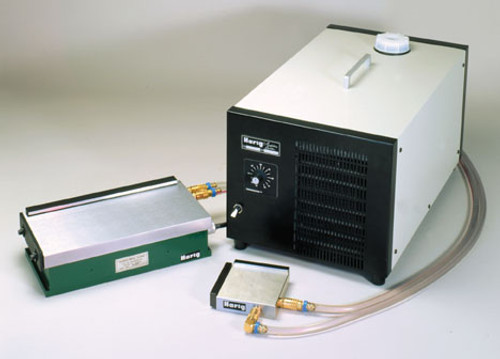

Harig Kool-Grind System
Harig's patented Kool-Grind System revolutionizes dry grinding by maintaining cool workpiece temperatures as you grind. An internally colled Plate and/or Chuck paired with the self-contained Chiller enables the Kool-Grind System to keep your workpieces cool. Heat generated in the workpiece during the machining process is absorbed by the Plate or Chuck instantly, without messy external coolant or mist systems.
The Kool-Grind System prevents parts from warping due to temperature fluctuations, and eliminates down time caused by waiting for pieces to cool. Without the fear of warping, you can leave less grinding stock on your workpiece, achieve closer tolerances, and reduce grinding wheel breakdown.
When dry-grinding, Harig's Kool-Grind System improves your accuracy, increases production rates, and adds repeatability by cooling workpieces without external coolants. Full repair service and replacement parts available. Reliability backed by Harig's trademark service.
Kool-Grind Chiller
- Includes four quick disconnect fittings for use with Kool-Grind Plate No. 44 and/or Kool-Grind Chuck No. 612
- User sets front panel temperature dial to maintain accurate internal collant temperature from 50-70 degrees farenheit
- Convenient front panel on/off switch re-circulates coolant to Plate and/or Chuck quickly and quietly
- Highly efficient magnetic drive pump and durable compressor for care-free operation
- Easy top fill with screw cap and large capacity reservoir
- Valved quick disconnect fittings prevent accidental spraying of coolant
- Top mounted carrying handle for easy portability
- Includes detatchable 6 ft. flexible power cord and one gallon of Kool-Grind Koolant
- Operation manual included.
Specifications:
| Size | 12" x 20" x 11" |
| Temperature settings | 50-70 degrees farenheit |
| Cooling capacity | 390 watts at 68 degrees farenheit |
| Reservoir capacity | 1.5 quarts |
| Power required | 110V AC |
| Amps | 7.0 at startup, 3.6 running |
| Weight | 47 lbs. |

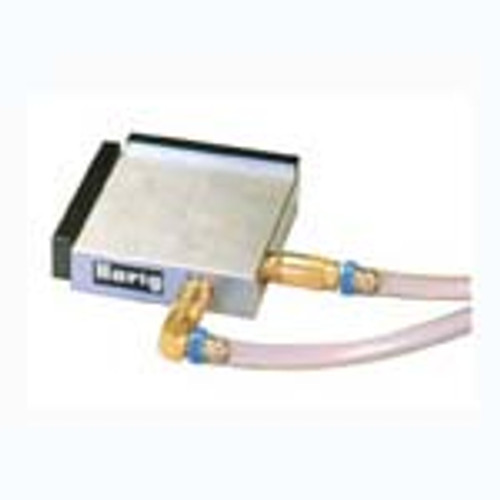

Kool-Grind Plate No. 44
- 4" x 4" Plate with back rail, side rail, and two attached quick disconnect fittings
- Patented internally cooled design instantly draws heat out from workpiece when Plate is connected to Kool-Grind Chiller
- Plate fits on top of existing permanent magnet or electromagnetic chuck
- Plate transfers strong magnetic pull to workpiece from longitudinal or transverse chucks
- Super fine-pole Plate is ideal for grinding small and thing workpieces
- Sleek design allows use on top of sine-chucks
- Includes 6' Plate Tubing with four quick disconnect fittings for easy portability
- Pressure tested for leaks prior to shipment
Specifications:
| Size | 4" x 4" x 1" |
| Square and parallel to | 0.0002 |
| Spacing | 1/16" poles and 1/32" separators |
| Poles | longitudinal on one side; transverse on flip side |
| Weight | 7 lbs. |
Kool-Grind Chuck No. 612
- 6" x 12" fine-pole electromagnetic Chuck with back rail and side rail
- Patented internally cooled design draws heat out from workpiece when Chuck is connected to Kool-Grind Chiller
- Universal size handles larger parts and is easily mounted to any 612 surface grinder
- Precision ground watertight design featuring a solid one-piece laminated top-plate
- Strong magnetic holding power - even on top edges of working surface
- Longitudinal fine-pole magnets for stronger and more uniform holding of small parts
- Low height for greater wheel head clearance when grinding taller pieces
- Includes 6' Chuck Tubing with quick disconnect fittings
- Pressure tested for leaks prior to shipment
Specifications:
| Size | 6" x 12" x 3" |
| Spacing | 1/8" poles and 1/16" separators |
| Power required | 115V DC 60 watts |
| Weight | 45 lbs. |
