Harig Grind-All No. 2 - Fixtures

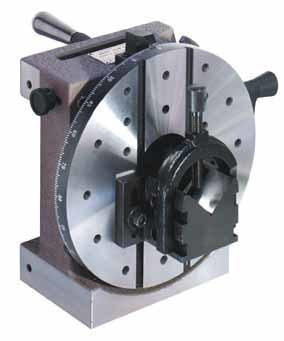

Harig's largest precision v-block fixture incorporates the advantages of the Grind-All No. 1 with the greater capacity. 2" diameter v-block and 6 7/8" face-plate diameter fits every toolroom's need for grinding larger punches, core pins, and EDM electrodes. Also used for precision indexing, inspecting, milling, boring, and radius dressing. Time tested to meet close tolerances for high precision work within "tenths." Uniquely designed to also mount horizontally.
- Hardened and ground tool steel with solid one-piece construction
- Preloaded ball and race design provides highest accuracy bearing
- Graduated 360 degrees for convenience
- 24 division index plate with precision index pin locks in every 15 degrees to +/- 10 seconds
- 2 adjustable stops work with stop pin to set accurate angles between index locations
- Locking screw locks spindle at any position between indexes
- U-Clamp and screw secure piece part in v-block
- Removable v-block for accurate face-plate work
- 6 7/8" diameter face plate has tapped holes for mounting purposes
- Hand crank for easy rotation is removable when used horizontally
- Optional rotary table mechanism provides geared rotation in the horizontal position
- Full repair service and replacement parts available
Specifications:
- V-Block capacity: 2”
- Center height: 4.000"
- Through hole: 1-3/16"
- Face-plate diameter: 6-7/8”
- Graduation: 60 degree
- 24 division indexing: +/- 10 seconds
- V-block within: 0.0001
- Square and parallel to: 0.0001
