Haimer Universal 3-D Taster Alignment & Positioning Indicators

Brand:

Call for Pricing

(No reviews yet) Write a Review

Haimer

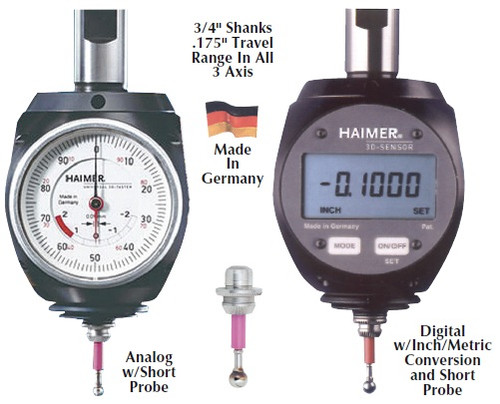

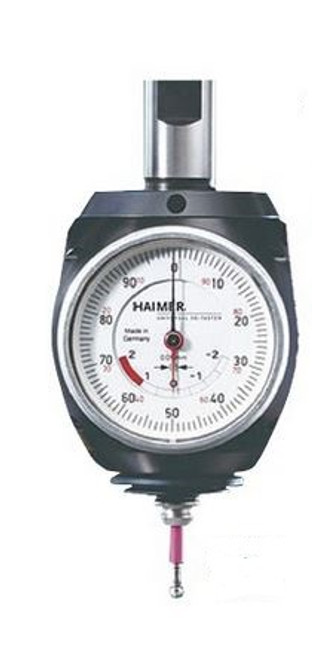

Haimer Universal 3-D Taster Alignment & Positioning Indicators


Features:

  • The Universal 3D Sensor is a very precise and versatile edge-finding, measuring instrument for milling and EDM machines (insulated probe)
  • The 3D Sensor is clamped into a tool holder and inserted into a milling spindle.
  • Once clamped into the machine spindle, the run-out (T.I.R.) is fully adjustable to zero.
  • Then, you are able to find exact positioning of the spindle axis on the edges of the workpiece.
  • This allows for zeros to be set and the length to be measured quickly and easily.
  • You may approach in any direction (X-, Y-, Z axis-hence the name "3D Sensor").
  • When the dial gage shows zero, the spindle axis is exactly on the workpiece edge.
  • Only the HAIMER 3D-Sensor allows for the edge to be found on the first attempt.
  • No calculating of the probe's ball diameter is necessary - just Zero it out!



*** Haimer USA requires any manufacturer defect claims to be made upon receipt of their products within 3 days. Failure to report issues promptly may result in a repair charge and void any warranty.
