Gear Drive Mill/Drill Machine OT7045FG
Benchtop mill/drill has amazing power and accuracy for multiple applications
This heavy-duty benchtop model is designed for fabrication shops, mold and die-making businesses or maintenance departments that need a large capacity, general purpose machine for milling/drilling, engraving, boring, tapping and angling. The gear-driven design and powerful 1 HP motor make it easy to work quickly and accurately at the speed you need. The R8 spindle taper ensures you can easily find the right tool for every job. Square column adds extra rigidity and sturdiness.
Features:
- R8 spindle taper.

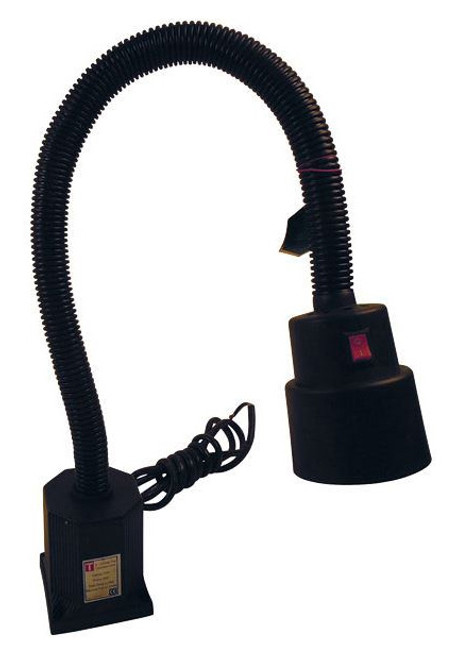

- Pre-wired for worklight.
- Square column.
Specifications:
| Item # | 87-115-145 |
| Unit of Measure | each |
| Must Buy | 1 |
| Country of Origin | Import |
| Shipping Restrictions | Truck Ship Only |
| Brand | OTMT |
| Description | OTMT Gear Drive Mill/Drill Machine - OT7045FG |
| Dimensions | 33"L x 42"W x 40"H |
| Model # | OT7045FG |
| Distance From Spindle Nose To Table | 26.77" (680mm) |
| End Milling Capacity | 1.10" (28mm) |
| Face Milling Capacity | 3.15" (80mm) |
| Horsepower | 1 HP |
| Machine Type | Mill/Drill |
| Minimum Distance From Spindle Axis Top Column | 10.24" (260mm) |
| Power Engine | 1 HP |
| Speed Range | 80 ~ 1,250 RPM |
| Spindle Taper | R8 |
| Spindle Travel | 5.11" (130mm) |

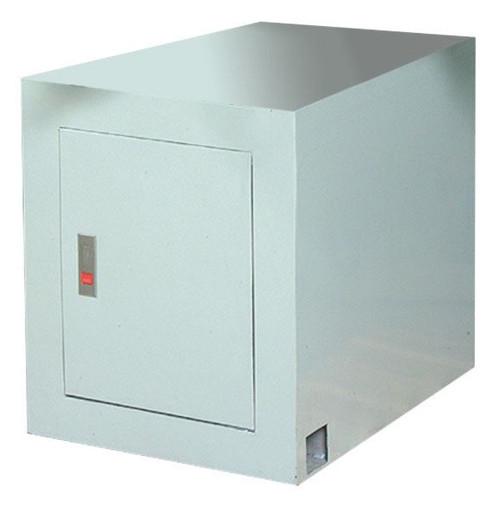

| Stand | 25.19"L x 16.54"W x 27.56"H |
| Step of Spindle | 6 |
| Travel of Table Forward & Backward | 6.89" (175mm) |
| Travel of Table Right & Left | 20" (500mm) |
| Weight | 790 lbs. |
Click to view the Owner's Manual
OTMT Gear Drive Mill/Drill Machine OT7045FG
