FlexArm Hydraulic Tapping Arms
When your machining center isn't milling, drilling, or boring, it’s costing your company money. Tapping is an inefficient and costly CNC operation best done by the FlexArm. Your CNC operator can use the FlexArm to tap holes, while the machine center works on the next part. Using the FlexArm in conjunction with your machining center saves money, time, tools, and materials.
Just Plug and Tap!
Features:
- Operates on 110 Volts (GH-18) or 480 Volts
- Independent Speed Control
- Variable Speed Motor
- Includes 5 FREE Tap Holders
Optional Accessories:
Step-less Quick Clamps
- Position your piece, clamp and tap
Automatic Depth Stop
- A FlexArm Automatic Depth Stop allows the operator to control depth and maintain consistency. Also availible with digital depth control.
Multi-Position Head
- 360 Degree Tapping adapter that allows for quick changes between vertical and horizontal tapping.
Blanchard Ground Steel Top Table with Casters
- A durable mobile mounting option for your new FlexArm
Specifications:

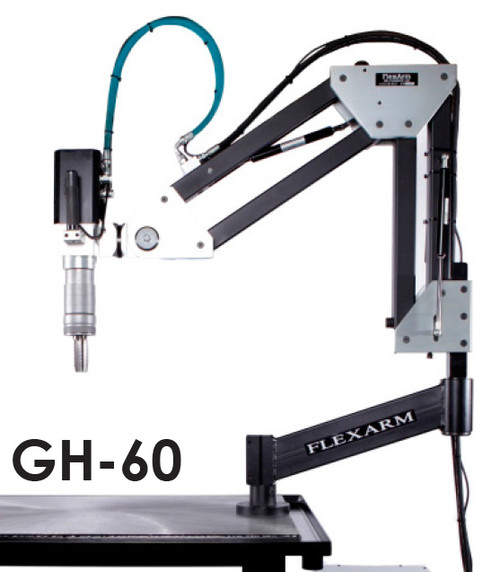

| Model | GH-18 | GH 24 | GH 30 | GH 45 | GH 60 |
| Working Range | 14" - 72" | 20" - 76" | 20" - 76" | 20" - 78" | 20" - 85" |
| Tap Capacity | #6 - 5/8" | #6 - 7/8" | #6 -1-1/4" | 1/4" - 1-1/2" | 1/4" - 2" |
| Max Torque | 59 ft/lbs | 78 ft/lbs | 188/63 ft/lbs | 325/63 ft/lbs | 811/162 ft/lbs |
| Speed Range | 100 - 420 RPM | 100 - 500 RPM | 140 - 500 RPM | 110 - 500 RPM | 55/275 RPM |
| Voltage | 110V | 480V, 3-phase | 480V, 3-phase | 480V, 3-phase | 480V, 3-phase |
| Quick Change Chuck | Size 2 | Size 2 | Size 3 | Size 4 | Size 4 |
