Evans Coatings Type II Stripcoat Clear Plating Mask Peel - EVS-B-100

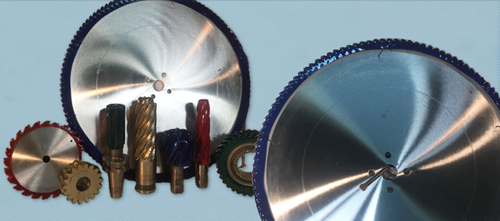

All of our Type II versions of Evans Stripcoat are based on a material called cellulose acetate butyrate. These protective strippable coatings can be used for many different applications including protecting saw blades, end mills, gages, gears, router bits, reamers, and many other parts.
Oil-free, Type II coating used as a stopoff in electroplating, for capping ends of tubing, and sealing ends of electric cables. Meets the requirements of MIL-P-23242B. Available in transparent clear and pink. (Specify When Ordering)
- Suitable for chromium, copper, cadium, nickel and all common plating solutions
- Easy to apply – dip the part and its ready to trim in seconds
- Excellent adhesion for distinct stop-off lines
- Nontoxic, safe to use
- Saves time and eliminates painting or taping
- Easily removed and can be remelted and reused
Mask Peel is used in masking for electroplating and for sealing the ends of electric cables. Type II versions of Evans Stripcoat are the most durable and have the quickest setup time compared to other types. Our Type II coatings contain more odor than our other types of coatings. These hot melt dip coatings are easy to peel off and have a very long pot life.
Mask Peel is a simple, economical and effective process for many stop-off plating jobs
1 The part shown required the small arm and holes to be plated without plating the remaining surfaces. After heating mask peel to a molten state, the part is dipped in the compound for 1 to 2 seconds, removed and allowed to harden. Mask Peel hardens in approximately 5 minutes. the speed of hardening can be increased by dipping in cold water.
2 Mask Peel is approximately one tenth of an inch thick. the holes and arm are now easily trimmed with a razor or knife. This operation saves many hours of taping or lacquer painting and drying time. The part is ready for plating.
3 After the plating operation, mask peel can be peeled off as you would a banana.
4 Now the part is ready for assembly. After rinsing in water, Mask Peel can be remelted and reused.
