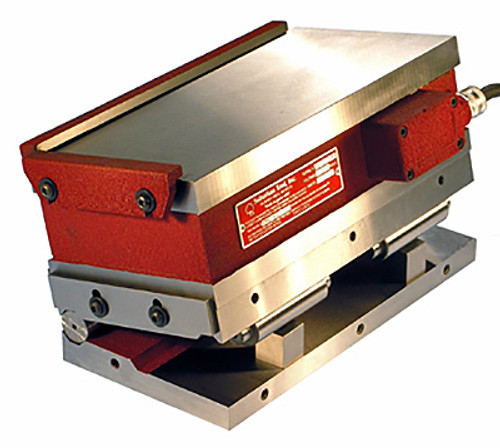

Suburban 12"L x 18"W x 6-5/8"H Electromagnetic Longitudinal Pole Sine Plate - ESP-1218-L-S2

• Sine Set Series S2
• Chuck top plates are laminated from 1/8" steel & 1/16" stainless steel, then furnace-brazed to form one solid piece.
• All units are sealed against dirt & liquids.
• Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part to be held.
• Chuck controls must be used with all electromagnetic chucks!
• Sine plate and electromagnetic chuck can be used together or independently.
• Electromagnetic chuck can be quickly removed or replaced using only four bolts.
• Two self-storing, hardened & ground rails included for the sine plate.
• Two side rails included for the electromagnetic chuck.
• Gage block rolls provide dual 0.200" minute steps for setting small angles with standard gage blocks.
• Angular accuracy guaranteed within 5 seconds of arc up to 15°, within 10 seconds up to 30°, & within 15 seconds up to 45°.
• C Measurement: 10” ±0.0003”
• Square & Parallel: 0.0004”
• Watts: 150
• Weight: 395 lbs.
• Made In U.S.A.
