Diamond, Cross and Straight Knurling Tools
Model LA/KF requires 2 Cutters 90°
Model LA/FL requires 1 Cutter 30° Left
Clean Cutting Action for Fast, High Quality Knurls — Every Time! Cut Clean Knurls in Most Metals and Plastics
- Simultaneous micrometer adjustment of the knurl cutter shaft to the workpiece diameter
- Knurling with a cutting action and minimized pressure
- Diamond or straight knurls

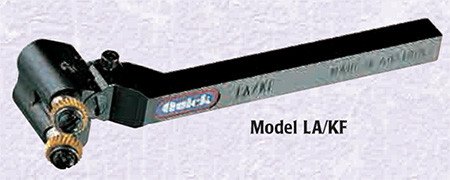

Model LA/KF
- Knurling cutters are not included. Cutter diameter determines pitches available. Cross Knurling requires 1 cutter 15° right and 1 cutter 15° left (on request).
* Right hand available on request.
| Model Number | Type | Shank Size | Length | Capacity | Cutter Dia. | Weight |
| 72-010-2 | LA/KF | 9/32" x 9/32" L | 3-5/32" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-011-0 | LA/KF | 5/16" x 5/16" L | 3-5/32" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-012-8 | LA/KF | 3/8" x 3/8" L | 3-5/32" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-013-6 | LA/KF | 1/2" x 1/2" L | 3-5/32" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
Model LA/FL
- Knurling cutters are not included. Cutter diameter determines pitches available. The type LA/FL is left hand cutting for left hand turning Lathes. Right hand cutting knurls for right hand turning Automatics can be furnished on special order. They require 1 cutter 30° right.
| Model Number | Type | Shank Size | Length | Capacity | Cutter Dia. | Weight |
| 72-050-8 | LA/FL | 9/32" x 9/32" L | 3-1/2" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-051-6 | LA/FL | 5/16" x 5/16" L | 3-1/2" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-052-4 | LA/FL | 3/8" x 3/8" L | 3-1/2" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
| 72-053-2 | LA/FL | 1/2" x 1/2" L | 3-1/2" | 1/16" - 1/2" | 11/32" | 0.25 lbs. |
