DeFelsko PosiTest LPD Low Voltage Pinhole Detector

The PosiTest LPD Low voltage Pinhole Detector detects holidays, pinholes and other discontinuities on metal and concrete substrates.

Features:

Simple:

• Easy-to-use interface with bright, multi-function LEDs
• Ready to measure — both kits come with everything needed for testing
• Audibly and visibly alerts when flaws are detected
• Lightweight, ergonomic design

Durable:

• Rugged, environmentally sealed enclosure
• Weatherproof, dustproof and shockproof — meets or exceeds IP65
• Two year warranty

Accurate:

• Automatic self-test verifies voltage calibration
• Regulated voltage outputs will not drop under load
• Long Form Certificate of Calibration included
• GroundSense™ visibly reassures the user that the instrument is properly grounded
• Conforms to international standards including ISO, ASTM and NACE

Versatile:

• A wide range of adaptable sponge hardware for a variety of test configurations
• Common threads and connectors allow for maximum flexibility
• Headphone jack with included earbud for noisy environments
• Uses 3 AAA alkaline or rechargeable batteries
• 4 voltage output options conform to a variety of standards

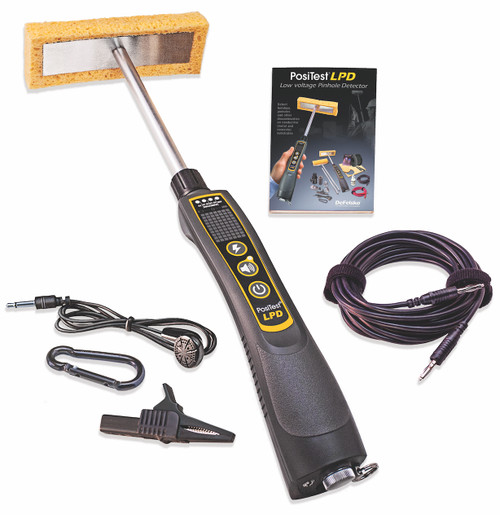

PosiTest LPD Basic Kit (LPDKITB)

Includes the PosiTest LPD and everything needed for detecting pinholes using a rectangular sponge wand in a convenient hard shell case.

• Basic Kit comes complete with: PosiTest LPD, base tube, 3 AAA batteries, rectangle sponge hardware, rectangle sponge, 4.5 m (15’) ground wire, insulating collar, ear bud, wrist strap, carabiner, Long Form Certificate of Calibration traceable to NIST, instructions, hard shell case, two year warranty

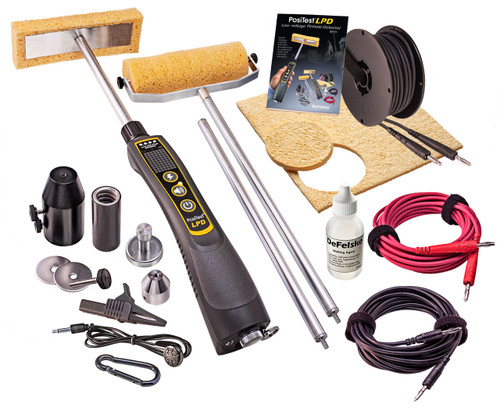

PosiTest LPD Complete Kit (LPDKITC)

Includes the contents of the Basic Kit, plus adaptable sponge hardware and extension accessories in a large hard shell case.

Adaptable Sponge Hardware:

• Rectangle (Flat)
• Roller
• Internal Diameter
• Additional 20 cm x 20 cm (8" x 8") sheet sponge for custom usages
• Wetting agent

Extension Accessories:

• Extension rods provide an additional 0.6 m (2') of reach
• Universal adapters to extend existing paint rollers and poles
• 12 m (40') ground wire
• 4.5 m (15') hot wire
• Magnetic grounding post
