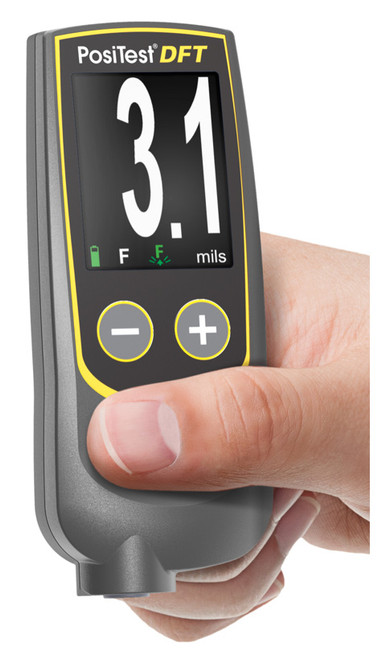

Defelsko PosiTest DFT Coating Thickness Gage
The PosiTest DFT Coating Thickness Gage measures coatings on metal substrates. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments.
Two Models:
PosiTest DFT Ferrous
- Measures non-magnetic coatings on steel
PosiTest DFT Combo
- Measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc. Automatically recognizes the substrate and takes a measurement.
Features:
- Fast, repeatable measurements — 60+ readings per minute
- Ready to measure - No adjustment required for most applications
- Zero or 1 Point Calibration Adjustment for complex applications
- Onscreen averaging for up to 99 readings
- Strong, wear-resistant, ruby-tipped probe
- V-groove in probe for positioning on cylindrical parts
- High contrast color display
- Adjustable display brightness for optimal visibility in all environments
- Auto rotating display with rotation lock
- Simple icon based menu
- Handy RESET feature when no zero reference is available
- Mils/microns switchable
- Built-in wrist strap for added convenience and safety
- Two year warranty
Ideal for:
- Powder Coaters
- Paint Applicators and Contractors
- Coating Inspectors
- Automotive Detailers, Refinishers and Inspectors
Technical Data:
| Measurement Range | 0 - 40 mils | 0 - 1000 um |
| Accuracy | ± (0.1 mils + 3%) | ± (2 um + 3%) |
Size: 108 x 43 x 20 mm (4.25" x 1.7" x 0.8")
Weight: 54 g (1.9 oz.) without batteries
Gage Comes Complete with:
- Wrist strap
- Precision plastic shims
- Hard shell storage case
- 2 AAA alkaline batteries
- Instructions
- Long Form Certificate of Calibration traceable to PTB
- Two year warranty
Conforms to: ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D7091/ E376/G12, BS3900-C5, SSPC-PA2 and others.
