DeFelsko PosiTector UTG CX Ultrasonic Thickness Gage
with Xtreme Corrosion Probe
Ultrasonic Thickness Gages Measures Wall Thickness
Measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.
Features:
- Precision ultrasonic transducers provide fast, accurate readings
- Solvent, acid, oil, water, and dust resistant – weatherproof
- Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease
- Min Scan - Measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
- PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Simple
- Large, easy-to-read, graphics LCD
- Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease
- Smart Couple™ – Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes
- Enhanced one-handed menu navigation
- Flashing display — ideal in a noisy environment
- RESET feature instantly restores factory settings
Accurate
- Precision ultrasonic transducers provide fast, accurate readings
- Certificate of Calibration (Long Form) showing traceability to NIST included
- Conforms to national and international standards including ASTM E797
- Built-in temperature compensation ensures measurement accuracy
Powerful
- Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
- Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
- Software Updates via web keep your gage current
- Screen Capture – record and save image into USB flash memory for record keeping and review
- Software Solutions for viewing, analyzing & reporting data
- Every stored measurement is date and time stamped
Durable
- Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
- Impact resistant lens
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Versatile
- High contrast LCD with backlit display
- Single or two point adjustment
- Inch/mm switchable
- Selectable display languages

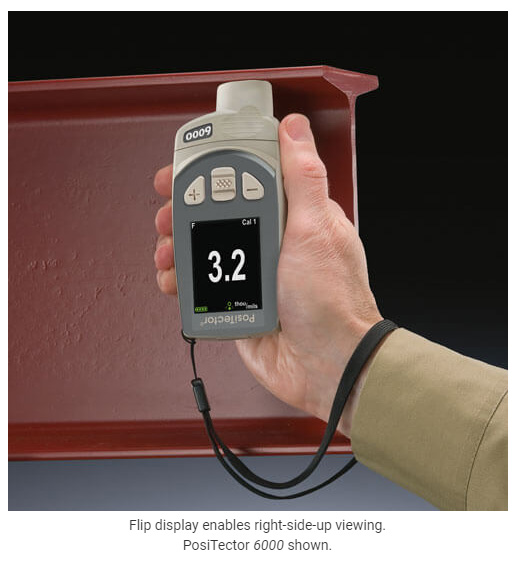

- Flip display enables right-side-up viewing
- Uses alkaline or rechargeable batteries (built-in charger)
| UTG CX Probe | |
| Probe Type | 5 MHz Dual Element |
| Thru-Paint Capability (Multiple Echo) | NO |
| Measurement Range* - Single Echo | 0.040" to 5.000", 1.00 to 125.00 mm |
| Measurement Range* - Multiple Echo | NA |
| Accuracy | ± 0.001", ± 0.03 mm |
* Measurement range is for carbon steel and depends upon surface condition, temperature and material.
Standard Models:
Includes ALL features as shown above plus...
- Storage of 250 readings per probe—stored readings can be viewed or downloaded
Advanced Models:
Includes ALL features as shown above plus...
- Storage of 100,000 readings in up to 1,000 batches
- A-Scan with adjustable Gain and screen capture
- B-Scan—displays a cross sectional profile of the test material
- Real-time graphing, picture prompting and batch notes
- Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
All gages come complete with:
- Body and probe, couplant, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiSoft Software, two (2) year warranty.
