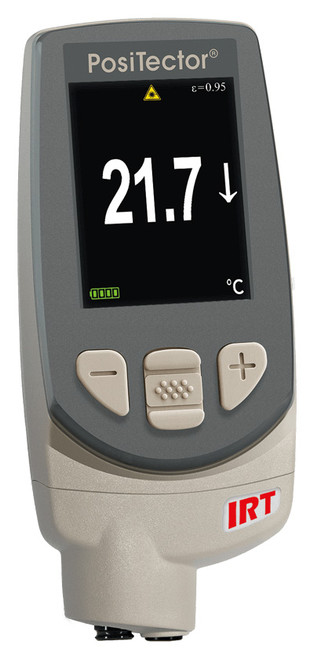

DeFelsko PosiTector IRT Infrared Thermometer
The new PosiTector IRT non-contact Infrared Thermometer measures surface temperature from a distance - ideal for areas where conventional sensors will not work including hard to reach areas and moving parts. It is also ideal for measuring on objects too hot for direct contact sensors or when contact with a sensor would damage the surface.
Non-contact surface temperature measurement
- Button-activated laser pointer for accurate targeting
- Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- Statistics Scan mode - continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Certificate of Calibration showing traceability to NIST included (Long Form)
- 5.7:1 distance to spot ratio - ideal for measuring large areas
- Smart Trend indicators identify rising, falling or stable readings
Simple:
- Surface temperature is constantly updated and displayed simultaneously
- Button-activated laser pointer for simple, accurate targeting
- Enhanced one-handed menu navigation
- RESET feature instantly restores factory settings
Accurate:
- Certificate of Calibration showing traceability to NIST included (Long Form)
- Fast response precision sensor provides accurate, repeatable readings
- 5.7:1 distance to spot ratio
- Smart Trend indicators identify rising, falling or stable readings
Powerful:
- Statistics Scan mode — continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Screen Capture — save screen images for record keeping and review
- Pause function allows readings to be manually recorded
- HiLo alarm audibly and visibly alerts when readings exceed user-specified limits
- Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
- PosiSoft USB Drive — stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Durable:
- Solvent, acid, oil, water and dust resistant - weatherproof
- Non-contact sensor won't get caught or worn
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Versatile:
- PosiTector body accepts all PosiTector IRT, DPM, 6000, 200, RTR, SPG, SST, SHD and UTG probes easily converting from a infrared thermometer, to a dew point meter, coating thickness gage, surface profile gage, soluble salt tester, Shore hardness durometer or ultrasonic wall thickness gage
- Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- High contrast LCD with backlit display
- Auto rotating display with lock to prevent unintended rotations
- Uses alkaline or rechargeable batteries (built-in charger)
Specs:
Click to view the Instruction Manual
Standard Models:
Includes ALL features as shown above plus...
- Storage of 250 readings per probe - stored readings can be viewed or downloaded
Advanced Models:
Includes ALL features as shown above plus...
- Storage of 100,000 readings from multiple probes in up to 1,000 batches
- Live graphing of measurement data
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
- Store thickness, profile, environmental and wall thickness measurements in individual batches
- Trend Charts graph readings in real-time
All gages come complete with IR temperature probe, protective rubber holster with belt clip, wrist strap, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two year warranty.
SIZE: 137 x 61 x 31 mm (5.4" x 2.4" x 1.1")
WEIGHT: 140 g (4.9 oz.) without batteries
