Defelsko PosiTector DPM Dew Point Meter

Measures and records climatic conditions including:

• Relative humidity
• air temperature
• surface temperature
• dew point temperature
• wind speed
• and difference between surface and dew point temperatures

Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32.

Simple:

• All readings are constantly updated and displayed simultaneously
• No need to consult complex tables or use a slide rule calculator
• Alarms indicate when climate conditions are unsuitable for painting
• RESET feature instantly restores factory settings

Durable:

• Solvent, acid, oil, water and dust resistant – weatherproof
• Shock-absorbing, protective rubber holster with belt clip and wrist strap
• Two year warranty on body AND probe

Accurate:

• Fast response precision sensors provide accurate, repeatable readings
• SmartTrend™ Indicators identify rising, falling or stable readings
• Certificate of Calibration showing traceability to NIST included
• Conforms to national and international standards including ISO and ASTM

Versatile:

• PosiTector body accepts all PosiTector DPM, 6000, 200, SPG, RTR, SHD, SST and UTG probes easily converting from a dew point meter to a coating thickness gage, surface profile gage, soluble salt tester, Shore hardness durometer or ultrasonic wall thickness gage

• Auto Log mode - automatically records enviromental parameters at user selected time intervals
• Celsius/Fahrenheit switchable
• Selectable display languages
• High contrast LCD with backlit display
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful:

• Every stored measurement is date and time stamped
• Hold function freezes the display allowing measurements to be manually recorded
• Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• Screen Capture—save screen images for record keeping and review


• Software Solutions for viewing, analyzing & reporting data:

     - PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required

     - PosiSoft Desktop - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.

     - PosiSoft.net account - a free web-based application offering secure storage of thickness readings

     - PosiTector App - (Advanced models only) - Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device.


• Software updates via web keep your gage current

Step 1 - Select a PosiTector body:

Standard Model:

Includes ALL features as shown above plus…

• Storage of 2,500 datasets
• Auto Log Mode automatically records environmental parameters at user selected time intervals. Runs unattended on batteries for up to 50 hours or continuously via USB

Advanced Model:

Includes ALL features as shown above plus...

• Storage of 100,000 datasets in up to 1,000 batches
• NEW Enhanced Auto Log mode - See our Remote Monitoring technical note to learn more.
• User defined limits for all parameters - visible and audible warnings
  NEW Send email alerts when connected to WiFi
• Onscreen Batch Annotation - add notes, change batch names and more with built-in QWERTY keyboard
• Store thickness, profile, environmental, hardness, salt contamination and wall thickness measurements in individual batches
• Wet bulb temperature can be displayed and recorded
• Trend charts graph readings in real-time
• WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and more
• Bluetooth Technology for data transfer to a mobile device running the PosiTector App or optional portable printer

- PosiTector App - Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device

• Auto-pairing Bluetooth BLE connection
• Easily create custom reports from your measurement data in seconds
• Add images to readings or batches
• Export readings to PosiSoft Desktop or synchronize readings with PosiSoft.net for further reporting and archival options

PosiTector SmartLink:

• Wirelessly connect PosiTector DPM and DPMS probes to your iOS or Android smart device
• Turns your cell phone or tablet into a virtual PosiTector gage
• Create and share professional PDF reports quickly and easily
• Includes free mobile app

Learn More

Step 2 - Select from 4 PosiTector DPM probes:

Integral Probe (DPM)

• Includes built-in air temperature/humidity sensor and thermocouple surface temperature sensor

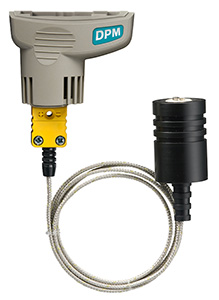

Integral Probe with Cabled Surface Temperature Sensor (DPMS)

• Includes built-in air temperature/humidity sensor and K-type connector
• Magnetic surface temperature sensor with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation
• Includes magnetic tab to attach the PosiTector body onto steel structures
• Easily converts to accept other optional K-type thermocouple sensors including:
  (a) hand-held surface temperature sensor
  (b) self-adhering surface temperature sensor
  and (c) liquid temperature sensor.

  See Accessories

Integral Probe with Wind Speed Sensor (DPMA)

• Includes the ambient temperature, surface temperature, and humidity sensors from PosiTector DPM Integral Probe plus a hot wire anemometer
• Anemometer mode measures air temperature, relative humidity and wind speed
• Auto-rotating display for inverted use
• Wind Speed Range: 0-20 m/s, 0-44 mph, 0-65 ft/s, 0-3900 ft/m, 0-72 km/h, 0-38 knots
• Wind Speed Accuracy: ± 3% Full Scale

Anemometer mode shown includes wind speed (v)

Cabled Probe with 1/2" NPT Threads (DPMD)

• Measures dew point, relative humidity and air temperature (shown)
• Sintered aluminum housing protects sensors
• 1/2" NPT threads for insertion into tanks and pipes (max 200 psi/ 1.3 MPa)

Probe Comparison Chart:

* Wet Bulb Temperature displayed/recorded on PosiTector Advanced (3) models only.
