DeFelsko PosiTector 6000 Inspection Kits

Brand:

DeFelsko PosiTector 6000 Inspection Kits

Call for Pricing

(No reviews yet) Write a Review
DeFelsko PosiTector 6000 Inspection Kits

Defelsko

DeFelsko PosiTector 6000 Inspection Kits

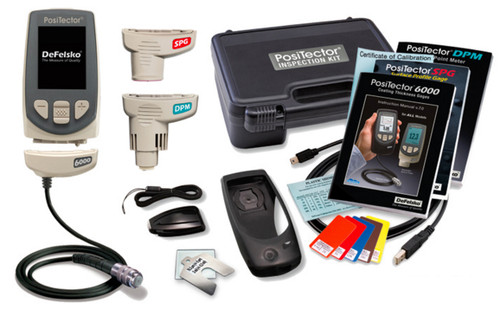

PosiTector Inspection Kits contain either a Standard or Advanced PosiTector body, PosiTector 6000 ferrous coating thickness probe, PosiTector SPG surface profile probe, and a PosiTector DPM environmental probe.


Each PosiTector body accepts the 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage.



  Standard and Advanced Kits - Feature Comparison



  PosiTector body features

 Standard (1) Advanced (3)

Accepts all PosiTector 6000, 200, DPM, SHD, SST, UTG, SPG and RTR probes.

High Contrast LCD Display
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
PosiSoft USB – stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
Software updates via web keep your gage current
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

Bluetooth 4.0 technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

PosiTector App - Mobile app connects PosiTector Advanced instruments to your iOS or Android smart device

  PosiTector SPG Surface Profile Probe specific features Standard (1) Advanced (3)

All features shown on PosiTector SPG page

Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Reading Storage Capacity
250 per probe
100,000 in up to
1000 groups

SmartBatch™ allows entry of user-defined parameters and criteria to comply with various standards and test methods


  PosiTector DPM Environmental probe specific features Standard (1) Advanced (3)

All features shown on PosiTector DPM page

Dataset Storage Capacity (1 dataset = RH, Ta, Ts, Td, Ts–Td) Stored readings can be viewed or downloaded
2,500 in
one group
20,000 in up to
1000 groups

Auto Log Mode automatically records all 5 parameters at user selected time intervals. Runs unattended on batteries or continuously via USB. View Video

Unattended battery life (using 3 AAA alkaline batteries)

 up to 50 hours up to 8 months

Stream datasets via USB or Bluetooth wireless at specified Auto Log intervals. Ideal for remote monitoring.



Trend Charts graph readings in real-time



User defined limits for all parameters with visible and audible warnings


  PosiTector 6000 Coating Thickness probe specific features Standard (1) Advanced (3)

All features shown on PosiTector 6000 overview page

Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

FAST mode faster measurement speed for quick inspection

3 Scan Modes — increase measurement speed to 180+ readings per minute



Hi-Lo Limits audibly and visibly alerts when measurements exceed your specified limits

Reading Storage Capacity
250 per probe
100,000 in up to
1000 groups

SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels



PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings



Multiple stored calibration adjustments for measuring on a variety of substrate conditions
