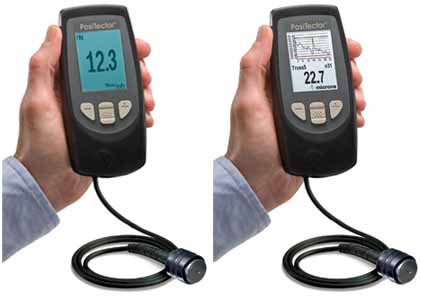

Defelsko PosiTector 6000 Coating Thickness Gages with FNTS Probe
Application: Both Non-Magnetic on Ferrous and Non-Conductive on Non-Ferrous Metals.
The PosiTector 6000 FNTS1 includes a Standard(1) gage body and a removable FNTS probe for measuring thick protective coatings on ferrous and non-ferrous metal substrates. Ideal for thick epoxy, rubber, intumescent fireproofing and more.
The PosiTector 6000 FNTS3 includes a Advanced(3) gage body and a removable FNTS probe for measuring thick protective coatings on ferrous and non-ferrous metal substrates. Ideal for thick epoxy, rubber, intumescent fireproofing and more.
Click for Probe Details / Ordering Guide
Simple:
- Ready to measure-no calibration adjustment required for most applications
- One-Handed menu navigation
- Bi-color indicator light-ideal in a noisy environment
- RESET feature instantly restores gauge to factory settings
Durable:
- Solvent, acid, oil, water and dust resistant - weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two (2) year warranty on gage body and probe.
Accurate:
- Certificate of Calibration showing traceability to NIST included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases gages displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile:
- Fully interchangeable probes are compatible with ALL gage bodies Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
| Feature Comparison Chart | Standard(1) | Advanced(3) | |
| Order Code | FNTS1 | FNTS3 | |
| Included Probe | FNTS | FNTS | |
| Accepts all PosiTector 6000 probes | X | X | |
| All features shown on Overview page | X | X | |
| Hi Contrast reversible color LCD | X | ||
| FAST mode - faster measurement speed for quick inspection | X | X | |
| SCAN Mode - take continuous readings without lifting the probe | X | ||
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | X | X | |
| Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | X | X | |
| Reading Storage Capacity | 250 in one group | 100,000 in up to 1000 groups | |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | X | X | |
| USB mass storage - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required | X | X | |
| Connects to PosiTector.net | X | X | |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | X | ||
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | X | ||
 | Wireless Technology for data transfer to a PC or optional portable printer | X | |
| Real Time Graphing | X | ||
| Onscreen help, picture prompting and batch notes | X | ||
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | X | ||
| Two (2) Year Warranty on Gage and Probe | X | X | |
| FNTS Probe (included) | ||||
 | Range: | 0 - 6 mm 0 - 250 mils | ||
| Accuracy*: | + (0.5 mils + 1%) 0 - 100 mils + (0.5 mils + 3%) > 100 mils | |||
| + (0.01 mm + 1%) 0 - 2.5 mm + (0.01 mm + 3%) > 2.5 mm | ||||
| *Accuracies are stated as a fixed value plus a percentage of the gage's actual reading. | ||||
 | Comes complete with Standard(1) or Advanced(3) gage body, FNTS probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty. Size: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1") Weight: 140 g (4.9 oz.) without batteries CONFORMS TO: ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others |
